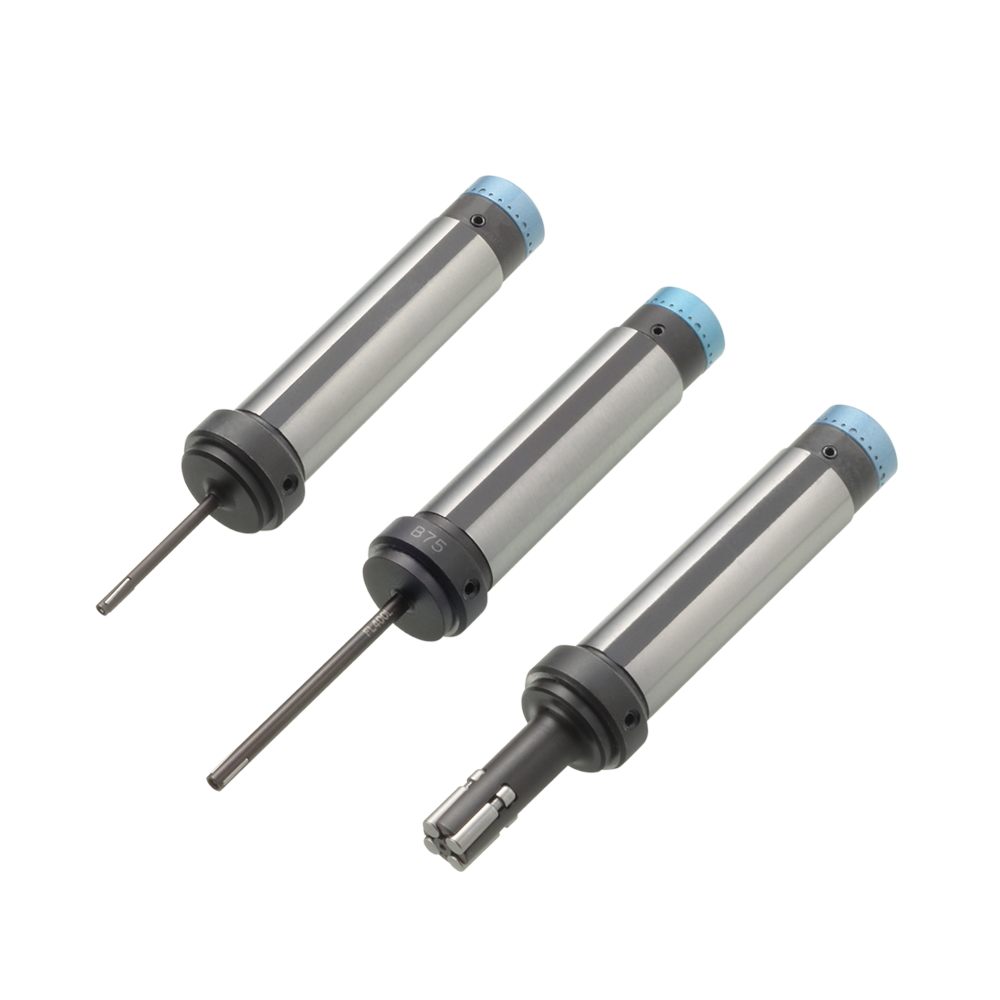

Superoll Slim CSL Type: Roller Burnishing Tools for Small Diameter Inner Surface
Compact Type Inner Surface Hole Processing CSL Type, diameter 3.0 to 14.5 mm
The compact type "Superoll Slim CSL Type" for inner surface hole processing features a compact adjusting mechanism for tool diameter and can be attached to the CNC automatic lathe. The shank shape is standardized to fit a typical CNC automatic lathe.
applicable machines: Lathe
Application Examples
Attachment to vertical holder
Attachment to opposing tool post
Attachment to turret tool post

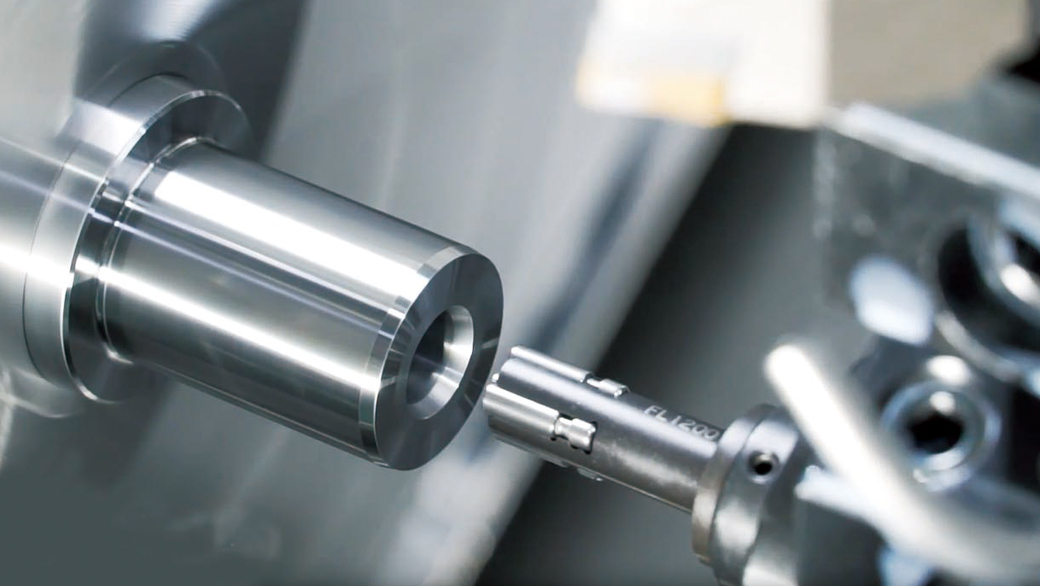

Processing Example
Gear shaft
Processing Requirements
| Tool type and number | CSL900A75L | |
|---|---|---|
| Workpiece material | SUS304 | |
| Processing size | mm | φ9 X 47L |
| Surface roughness | Rz μm | Before burnishing: 4.4 |
| After burnishing: 0.6 | ||
| Rotation Speed | min-1 | 1,000 |
| Feed rate | mm/rev | 0.8 |
| Processing time | Seconds | 4.6 |
Comparison of surface roughness
Non-burnished area of Superoll Slim CSL Type
| Processing diameter | Non-burnished area |
|---|---|
| mm | mm |
| 3 - 7.9 | 0.8 |
| 8 - 14.5 |
Note 1. The value for non-burnished area shown above applies when clearance with the work end face is ensured at 0.5 mm.
2. To minimize non-burnished area of Superoll, grind off the head protrusion from the roller tip to the same position as the roller tip after setting the tool diameter.
Dimensions
Note: Processing length H is the actual tool length. An allowance of 1-2 mm is necessary during actual processing.
Specifications
| Tool type and number | Tool diameter Adjustment range | Processing length H | Shank diameter E | Shank length K | Tool length G | Total length Min. L | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Standard | Long | Standard | Long | Standard | Long | |||||
| Standard | Long | mm | mm | mm | mm | mm | mm | mm | mm | mm |
| CSL 300 | CSL 300 L | 2.95 - 3.15 | 30 | 50 | 19.05 ・ 20 ・ 22 ・ 25 ・ 25.4 | 75 ・ 115 | 45 | 65 | 120 Note1 160 Note2 | 140 Note1 180 Note2 |
| CSL 350 | CSL 350 L | 3.45 - 3.65 | ||||||||
| CSL 400 | CSL 400 L | 3.95 - 4.15 | ||||||||
| CSL 450 | CSL 450 L | 4.45 - 4.65 | ||||||||
| CSL 500 | CSL 500 L | 4.95 - 5.15 | ||||||||
| CSL 550 | CSL 550 L | 5.45 - 5.65 | ||||||||
| CSL 600 | CSL 600 L | 5.95 - 6.15 | ||||||||
| CSL 650 | CSL 650 L | 6.45 - 6.65 | ||||||||
| CSL 700 | CSL 700 L | 6.95 - 7.15 | ||||||||
| CSL 750 | CSL 750 L | 7.45 - 7.65 | ||||||||
| CSL 800 | CSL 800 L | 7.95 - 8.15 | ||||||||
| CSL 850 | CSL 850 L | 8.45 - 8.65 | ||||||||
| CSL 900 | CSL 900 L | 8.95 - 9.15 | ||||||||
| CSL 950 | CSL 950 L | 9.45 - 9.65 | ||||||||
| CSL1000 | CSL1000L | 9.95 -10.15 | ||||||||
| CSL1050 | CSL1050L | 10.45-10.65 | ||||||||
| CSL1100 | CSL1100L | 10.95-11.15 | ||||||||
| CSL1150 | CSL1150L | 11.45-11.65 | ||||||||
| CSL1200 | CSL1200L | 11.95-12.15 | ||||||||
| CSL1250 | CSL1250L | 12.45-12.65 | ||||||||
| CSL1300 | CSL1300L | 12.95-13.15 | ||||||||
| CSL1350 | CSL1350L | 13.45-13.65 | ||||||||
| CSL1400 | CSL1400L | 13.95-14.15 | ||||||||
| CSL1450 | CSL1450L | 14.45-14.65 | ||||||||
2. When shank length is 115 mm
3. We also manufacture parts with shank sizes, tool adjustment ranges and altered processing lengths other than those shown in the above table.
Application Examples
- Air pressure valve parts
- Gear shaft
- Cylinder
- Coupling
- Rocker arm
- Valve body
- Bearing insertion surface
- Shaft
- Pins, etc.
 |  |  |
|---|
