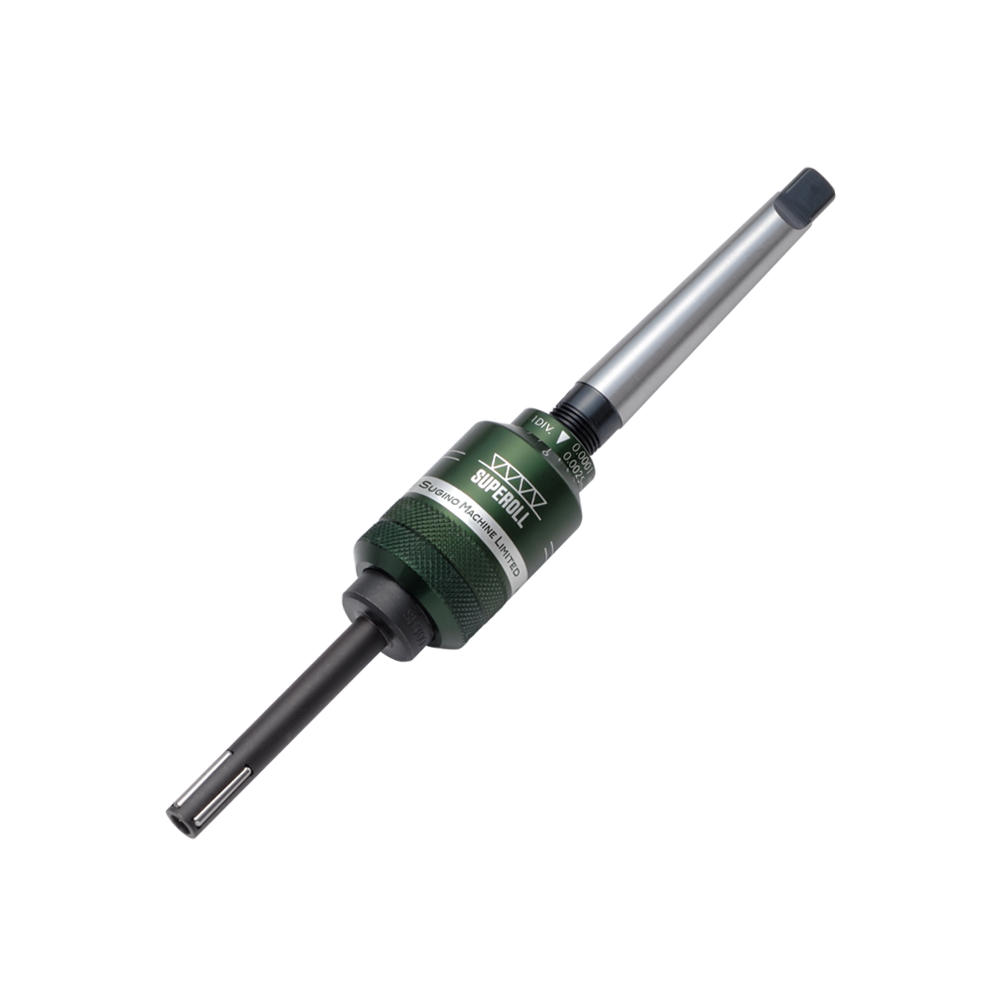

Superoll SH Type: Roller Burnishing Tool for Inner Surface Through-hole

 For inner surface through-holes, diameter 4.5mm or greater

SH-iconSUPEROLL-TypeSHThe "Superoll SH Type" roller burnishing tool for inner surface through-hole is equipped with a 0.0025 mm (1 scale mark) micro-adjustment mechanism. Suitable for through-holes.

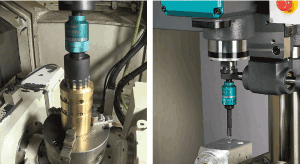

applicable machines: Drill presses, drilling units, lathes, machining centers













Non-burnished area of  Superoll SH Type

SUPEROLL-SH-Unprocessed-portion

Processing diameterNon-burnished area
mmmm
4.5 - 5.72.0
6.0 - 7.62.1
8.0 - 14.52.5
15.0 - 34.02.8
35.0 - 74.03.8

Note 1. To minimize non-burnished area of Superoll, grind off the head protrusion from the roller tip to the same position as the roller tip after setting the tool diameter.

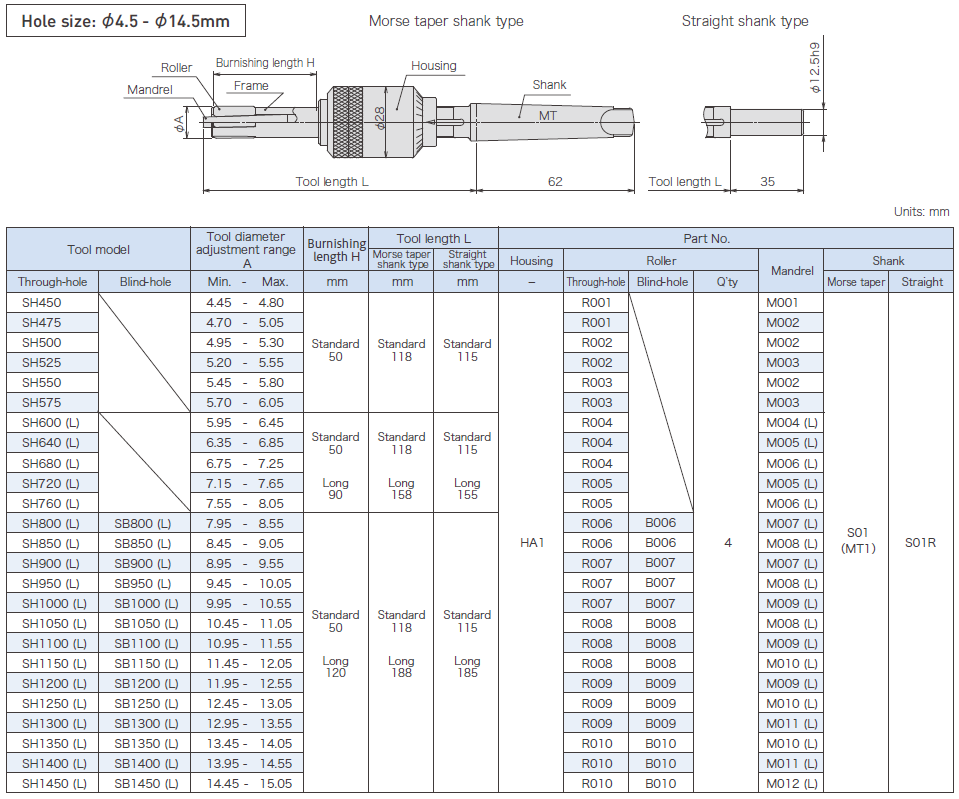

Dimensions

 superoll-SH-dimension

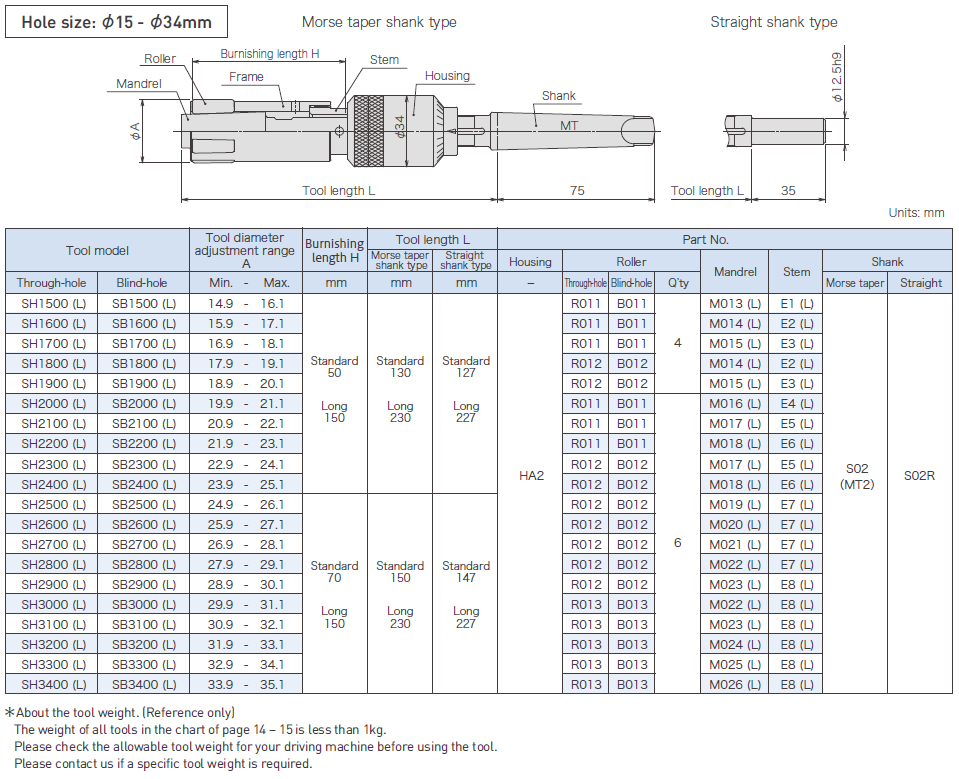

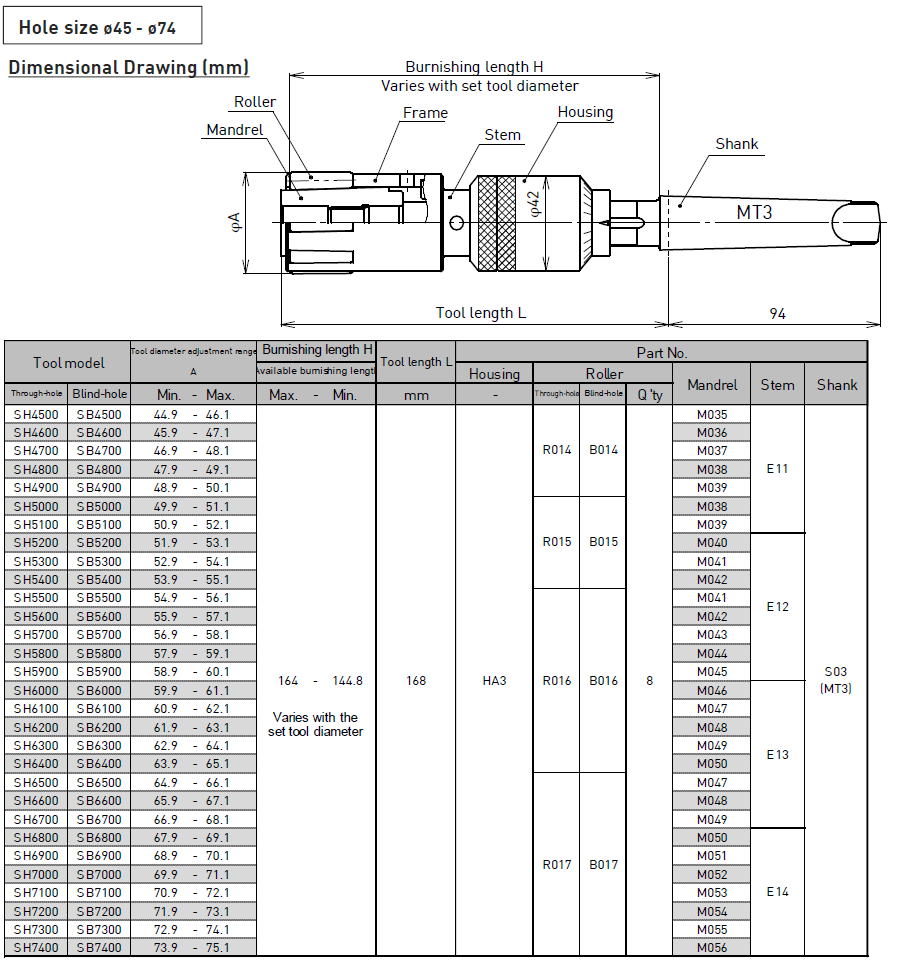

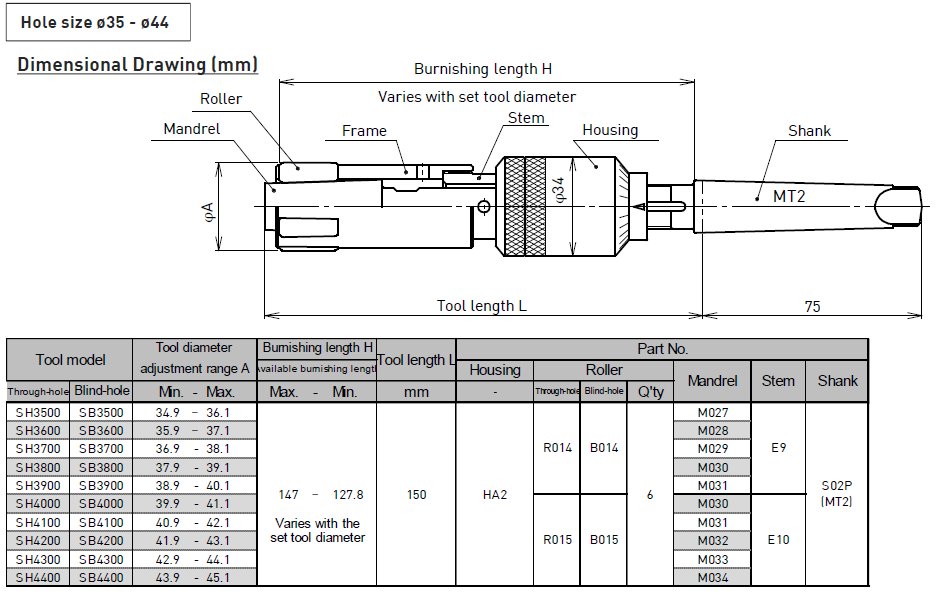

 Notes: 1. Refer to the catalog for specifications of 14.5 mm or greater.

Specifications


Processing diameters of up to 75 mm are treated as standard. Contact us for processing diameters over 75 mm.
Standard type: Diameter of 4.5 mm or above
Tool type and numberTool diameter Adjustment RangeMaximum processing lengthTool length LHousing diameter D
Morse taperStraight
mmmmmmmmmm
SH4504.45 - 4.805011811528
SH5004.70 - 5.30
SH5255.20 - 5.55
SH5505.45 - 5.80
SH5755.70 - 6.05
SH6005.95 - 6.45
SH6406.35 - 6.85
SH6806.75 - 7.25
SH7207.15 - 7.65
SH7607.55 - 8.05
SH8007.95 - 8.55
SH8508.45 - 9.05
SH9008.95 - 9.55
SH9509.45 - 10.05
SH10009.95 - 10.55
SH105010.45 - 11.05
SH110010.95 - 11.55
SH115011.45 - 12.05
SH120011.95 - 12.55
SH125012.45 - 13.05
SH130012.95 - 13.55
SH135013.45 - 14.05
SH140013.95 - 14.55
SH145014.45 - 15.05
 Long type: Diameter of 6.0 mm or above
Tool type and numberTool diameter Adjustment RangeMaximum Processing LengthTool length LHousing diameter D
Morse taperStraight
mmmmmmmmmm
SH600L5.95 - 6.459015815528
SH640L6.35 - 6.85
SH680L6.75 - 7.25
SH720L7.15 - 7.65
SH760L7.55 - 8.05
SH800L7.95 - 8.55120188185
SH850L8.45 - 9.05
SH900L8.95 - 9.55
SH950L9.45 - 10.05
SH1000L9.95 - 10.55
SH1050L10.45 - 11.05
SH1100L10.95 - 11.55
SH1150L11.45 - 12.05
SH1200L11.95 - 12.55
SH1250L12.45 - 13.05
SH1300L12.95 - 13.55
SH1350L13.45 - 14.05
SH1400L13.95 - 14.55
SH1450L14.45 - 15.05
Notes: 1. Refer to the catalog for specifications of 14.5 mm or greater.

 Application Examples

  • Cylinder inner surfaceconrod_valvehousing
  • Motor stators
  • Connecting rod
  • Rocker arm
  • Other through-holes, etc.

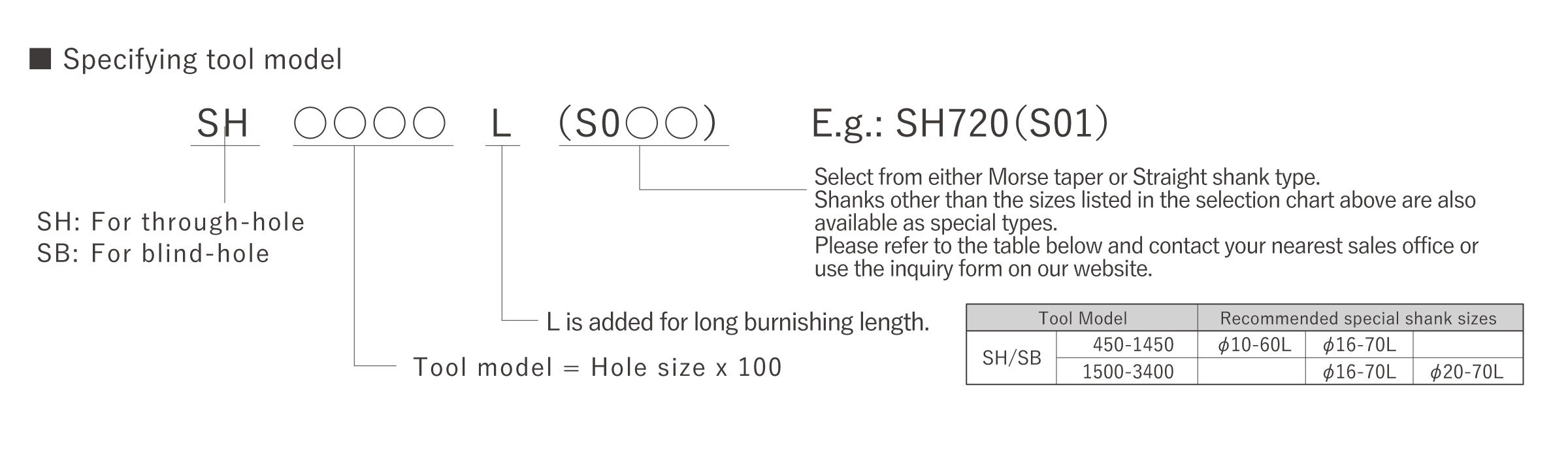

Tool selection

  • Check the tool adjustment range that is compatible with the inner diameter of the pre-burnishing hole.

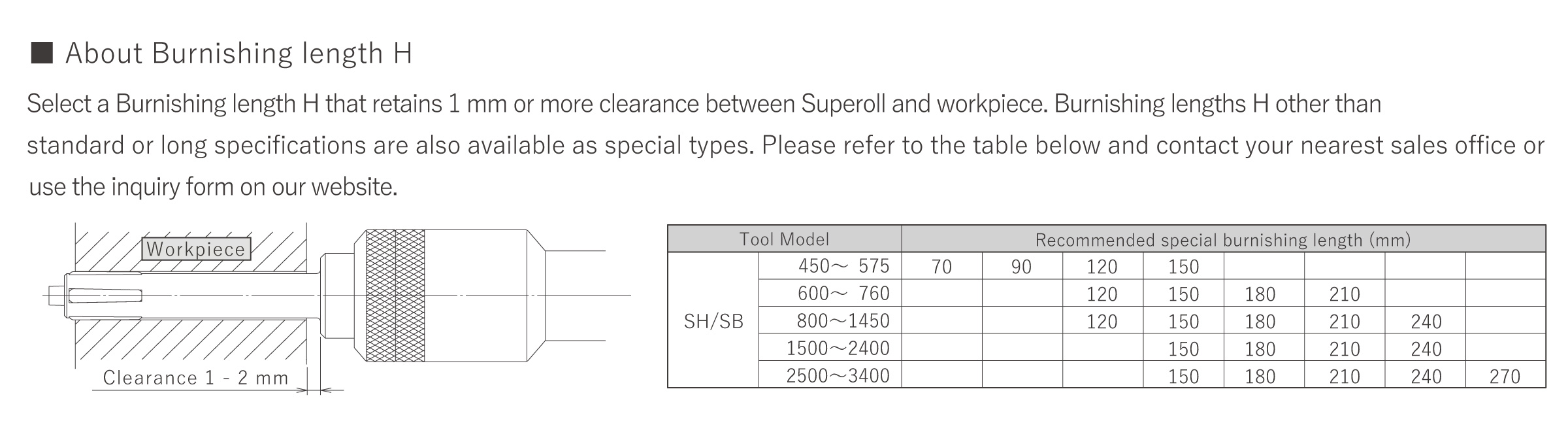

  • Select either the standard or long type to match the lenght of the pre-burnishing hole .
  • For processing diameters of 4.5 mm to 34 mm, select a shank model suitable for your machine.
  • When ordering replacement parts, specify the part name, part type and number.
