Floating oil recovery unit : JCC-HM dedicated option
Removes both floating oil and oil in the liquid all at once! Outstanding processing capability!!
The Floating Oil Recovery Unit is a dedicated option that can be added to the JCC-HM by simply connecting it to the water supply, providing floating oil recovery functionality.
It can also be retrofitted to existing JCC-HM units, which will double the oil recovery capacity.
Check out the floating oil recovery unit in the video!
Features
(1) Thorough oil recovery with double removal from the surface and within the liquid!
By installing the floating oil recovery unit developed for the JCC-HM, you can simultaneously collect oil from both the liquid surface and the liquid itself. Unlike many devices that only recover oil from the surface, this product achieves unprecedented processing speed by recovering oil from both areas at once.

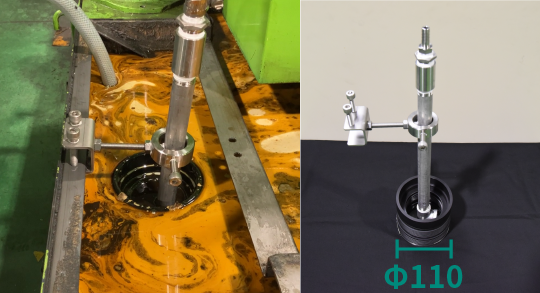

(2) By fixing it to the tank, stable floating oil recovery is achieved!
To ensure stable oil recovery from the liquid surface, we have adopted a fixed installation method on the tank. Unlike float-type systems that are affected by fluctuations in the liquid surface height, fixing the unit to the tank allows for continuous and stable recovery of floating oil.
Additionally, by keeping the unit’s outer diameter to φ110, it can be smoothly installed even in tanks with small openings.

(3) The bellows automatically follows the fluctuating level of the liquid.
The bellows incorporated into the unit body can stretch up to a maximum of 100 mm, maintaining an optimal position for stable recovery of floating oil at the surface of the liquid.

(4) The option can be retrofitted to already installed JCC-HM units!
It is designed to be retrofitted to the existing processing circuit of the JCC-HM. Depending on the condition of the tank and the need for floating oil recovery, the float option can be added later.
