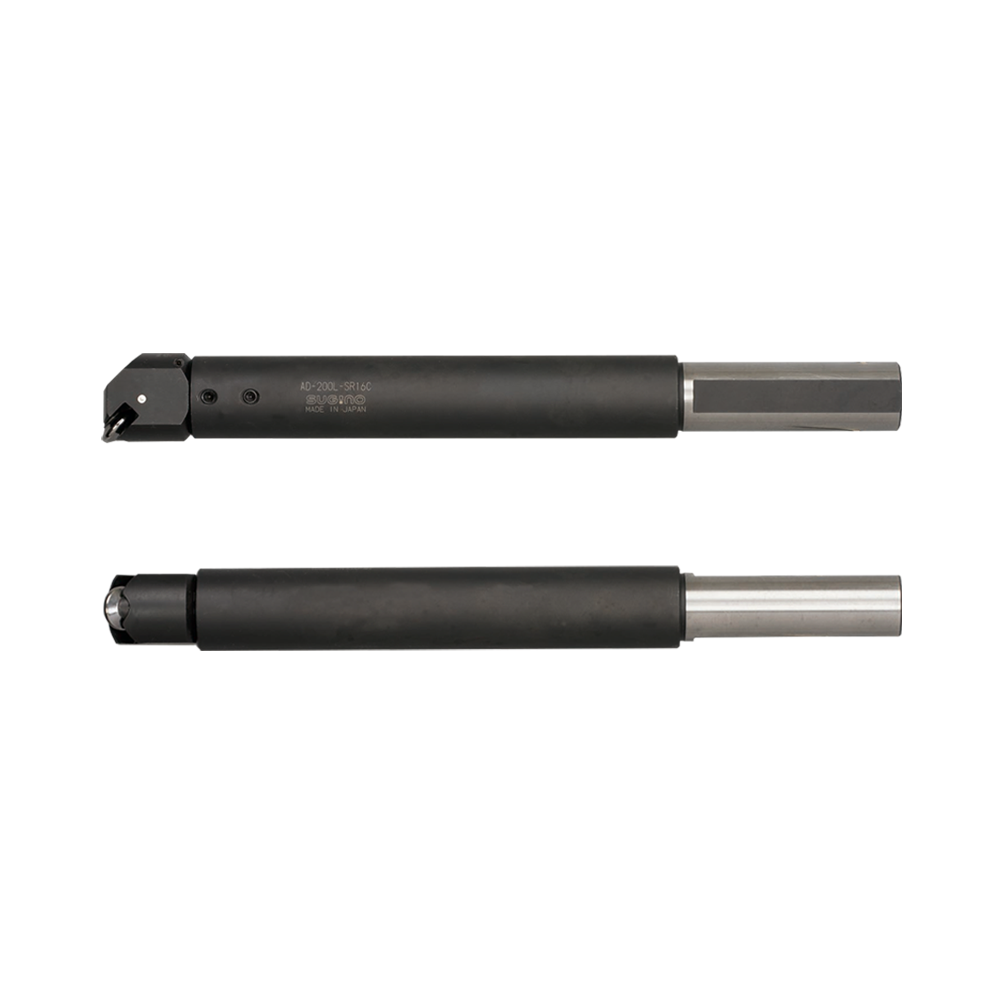

Roller burnishing tool SUPEROLL SR16C [Inner Surface/Through-hole/Blind-hole]

SUPEROLL SR16C

Single Roller Type

SUPEROLL SR16C is a versatile inner burnishing version tool of SUPEROLL SR16M.
For shank specification and Max burnishing length, contact your nearest sales office or use the inquiry form on our website.

Product Information

Available workpiece shape: Through-hole, Blind-hole

Available driving units: Engine lathe, Turret lathe

Available burnishing range: Hole size: φ35mm or more
*Vary depending on the burnishing length.

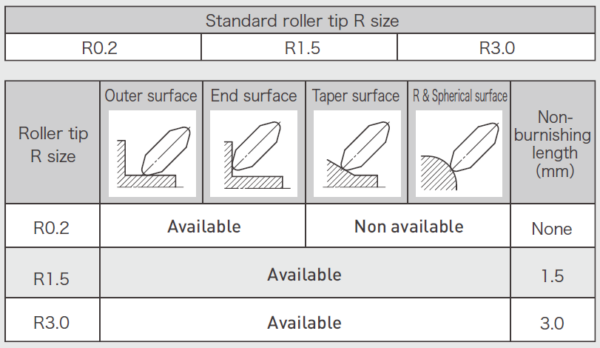

Roller tip R: Select Roller tip R size in accordance with workpiece or requested burnishing conditions.

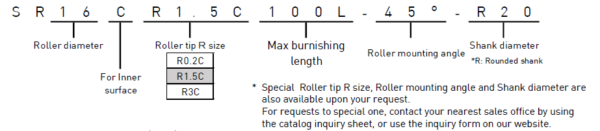

Specifying tool model:

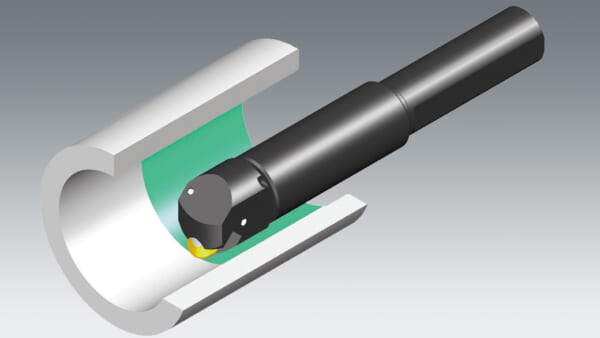

Burnishing image:

Specification example:
