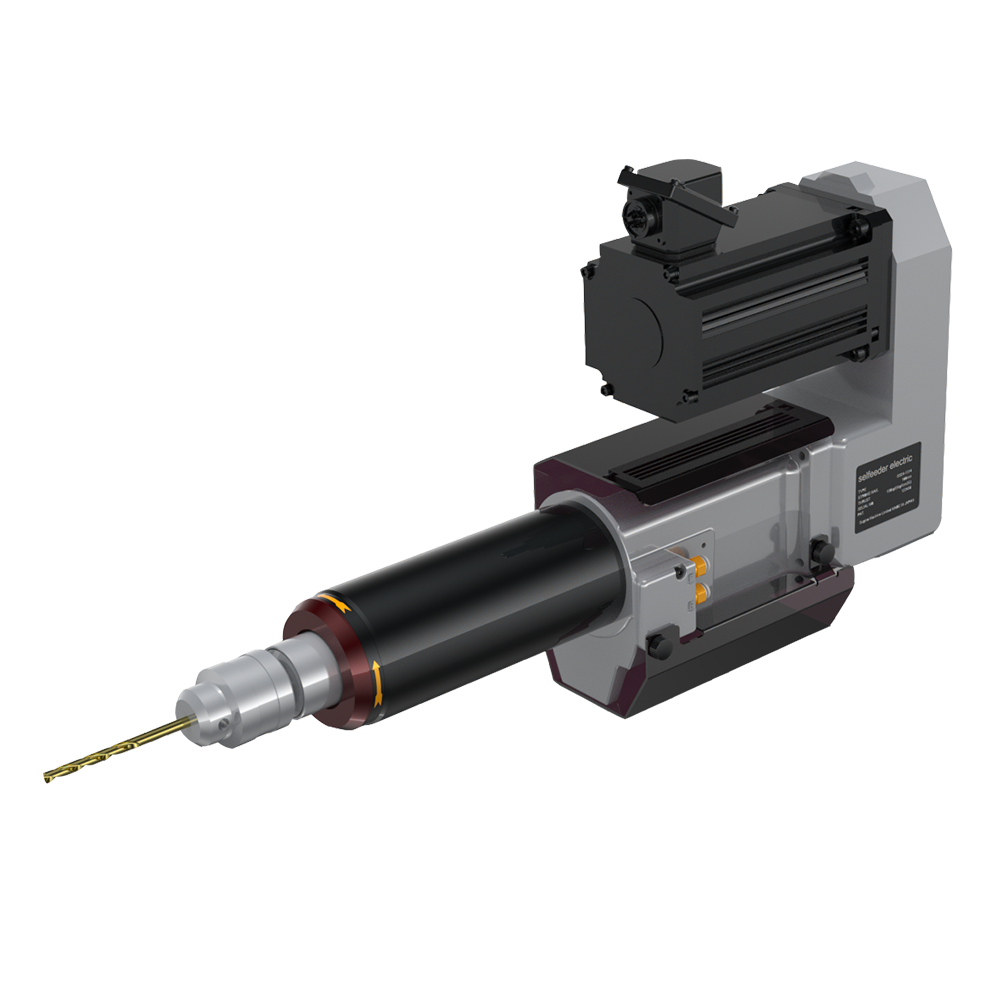

SELFEEDER ELECTRIC SSE4 : Pneumatic Feed Drilling Unit

SELFEEDER ELECTRIC SSE4

Pneumatic Feed Drilling Unit that aims to enhance the low speed rotation range!

“Selfeeder Electric SSE4” covers the high-torque range not covered by the SSE3.
The long stroke type is the longest in the SSE series.

Max. drilling size … φ12(Steel)／ φ16(Aluminum)

1．Energy Saving
Energy consumption can be reduced by approximately 20% compared to a three-phase induction motor with the same output.

2．Global Support
Not subject to overseas high-efficiency motor regulations, making it easy to apply to equipment to be exported overseas.

3．Variable Spindle Rotation
Variable spindle speed eliminates the need for setup changes and can handle a wide range of machining diameters.

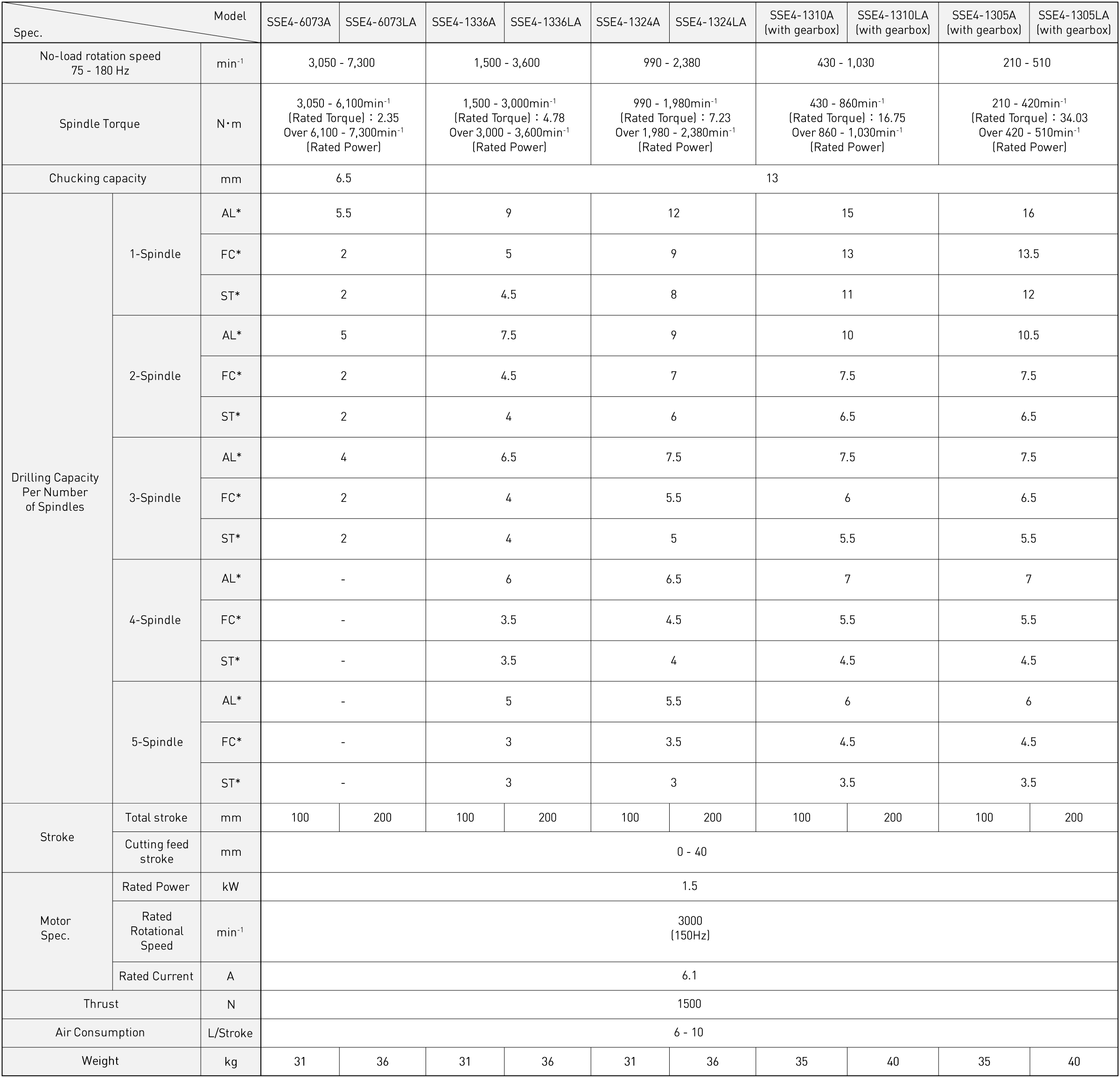

Supply air pressure at 0.5 MPa

Notes:

The selection of models should be based on the shape of the work, material, cutting characteristics, diameter and material of tools, rotational speed (cutting speed), etc.
The drilling capacity displayed in the above table is based on values representing a drilling depth of twice the diameter of the drill.
The standard attachment for the Hydro Speed Regulator is RB-3140. Please specify an optional Hydro Speed Regulator if required.
(Optional Hydro Speed Regulator Models: RB-3160, R-3182A, R-31132A)
Make sure to use a collet chuck or spindle nose when the hardness of carbide drills and tool shanks is higher than that of general HSS (high-speed steel) drills.
Valveless specification is standard. If you require valve block specification (former standard specification), please order valve block assʼy separately. (Replacement to be made by customer)
AL : Aluminum(ADC12) , FC : Cast iron(FC200) , ST : Steel(S45C)
