Roller burnishing tool SUPEROLL SR3Z [Outer groove side]
SUPEROLL SR3Z
Single Roller Type
SUPEROLL SR3Z is suitable for finishing groove side surface for attaching O-ring or seal ring.
Burnishing Image
*Burnishing bottom surface is not available.
Video
Features
It’s designed for use with lathes, for burnishing with a single roller.
Groove side walls can be burnished with a single tool.
Stable finishing can be achieved by adjustable load.
Applicable for a wide range of materials, from steel to non-ferrous metals
The roller corner radius of R0.2 minimizes the non-burnishing area.
Achieves a roughness of Rz 0.8 µm or less, which is difficult to accomplish with machining.
Product Information
Available workpiece shape: Outer groove bottom
Available driving units: Engine lathe, Turret lathe

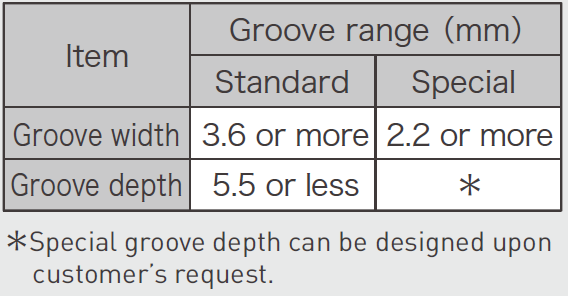

Available groove range:
SR3Z attachment scene:

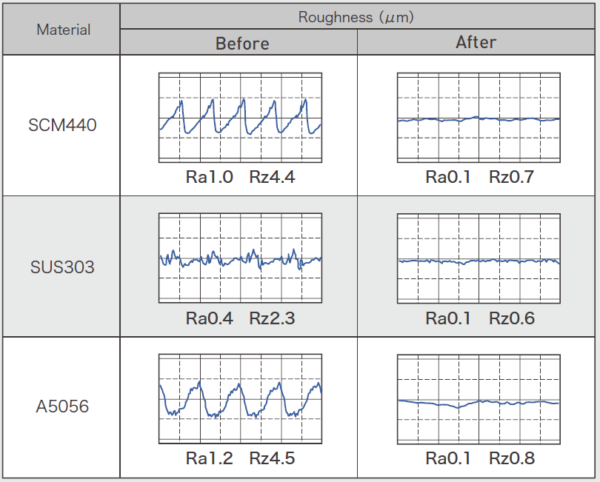

Burnishing data：
