Roller Burnishing Tool SUPEROLL CSL [Inner Surface Through-hole/Blind-hole]

SUPEROLL CSL

Multi Roller Type

SUPEROLL CSL can be installed on Swiss lathe as the tool diameter adjustment mechanism is downsized from SUPEROLL SH/SB.
Shank is standardized based on the typical CNC lathe.

Video

Burnishing scene

Features

  • Speedy burnishing with multiple rollers.
  • Shank is standardized based on the typical CNC lathe.

Product Information

Available workpiece shape: Through-hole, Blind-hole

Available driving units: Machining center, Engine lathe, Turret lathe, Swiss lathe

Hole size: φ3-φ14.9

Burnishing length: Standard:30mm, Long: 50mm

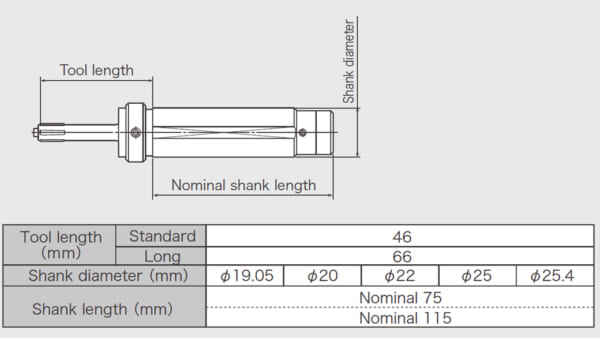

Dimensional drawing:

Application Examples

  • Air pressure valve parts
  • Gear shaft
  • Cylinder
  • Coupling
  • Rocker arm
  • Valve body
  • Bearing insertion surface
  • Shaft
  • Pins, etc.
