SELFEEDER PNEUMATIC SFC : All Air Drilling Unit
SELFEEDER PNEUMATIC SFC
Completely pneumatically driven drilling unit. Though it is compact, it also supports a multi-axis head!
“Selfeeder Pneumatic SFC” is a completely pneumatically driven drilling unit. In spite of the compact design, it is capable of drilling processing and supports a multi-axis head.
Max. drilling size … φ10(Steel)／ φ14(Aluminum)

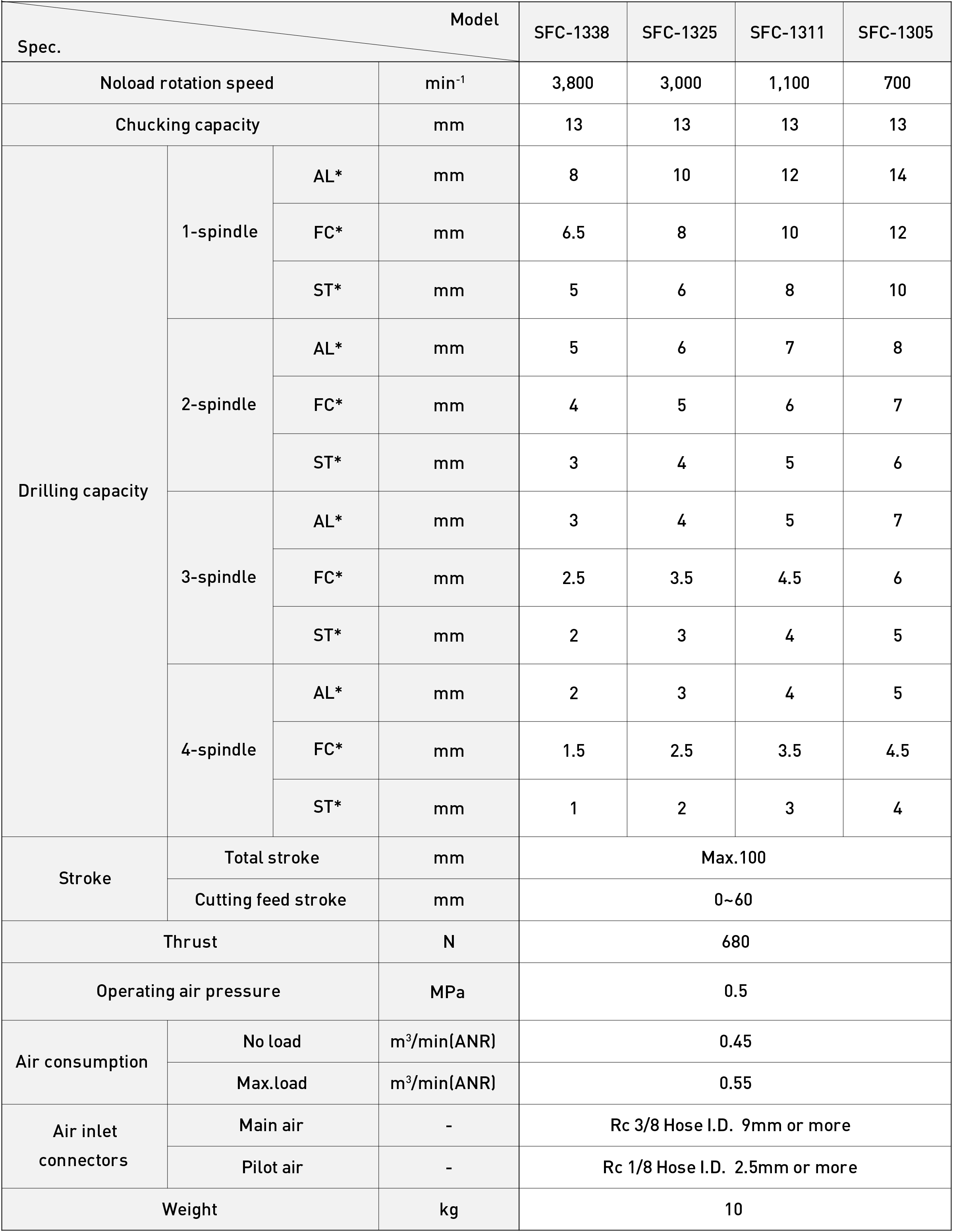

Specifications
Supply air pressure at 0.5 MPa
Notes:
Maximum capacity drill size will vary depending on input operating air pressure. (Operating air pressure: 0.5MPa)
The RB-2460 is installed as a standard type Hydro-Speed Regulator. Specify an optional Hydro-Speed Regulator as necessary.
(Optional Hydro Speed Regulator models are: R-2442A, R-2462A, and R-2482A)
*When installing a product other than RB-2460, some parts will be changed.Model selection should be done from the above chart , based on workpiece specifications, material hardness, diameter of hole and cutting speed.
To achieve maximum power, it is necessary for the spindle to progress forward 7mm or more.
When the hardness of the cemented carbide drill and tool shank is higher than that of a high speed steels, please contact our local distributor or
subsidiary for detailed specifications.AL : Aluminum(ADC12) , FC : Cast iron(FC200) , ST : Steel(S45C)
Dimensions
