Jet Lancer: Stationary High-Pressure Water Cleaning Equipment for the Inside of Tanks
JET LANCER
Makes small, compact and highly accurate cleaning possible!

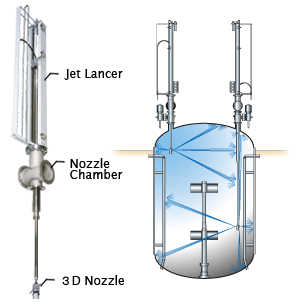

The “Jet Lancer” is a cleaning equipment in which the overall height of the compact lance is lowered by adopting a multilevel screw format in the lance lifting mechanism.
Features
1.Small and compact By lowering the overall height of the cleaning equipment, it can easily be housed in an existing reactor with limited ceiling height.
2.Precision cleaning is possible As the cleaning point can be installed in any desired location, it makes more precise and accurate cleaning possible in a shorter time.
At the same time, this helps to save water used for cleaning.3.Can be attached to 6B small manholes By fixing original Sugino cleaning attachments, it can also be installed in the reactor of 6B small manholes.
Specifications
| Model number | Pressure | Flow rate | Elevating stroke | Elevating speed | Dimensions | Weight |
| MPa | L/min | mm | m/min | mm | kg | |
| JTL-1955WL | 45 | 50 – 200 | 5,500 | 1.5 | Width 200 × Depth 350 × Height 4,000 |
500 |
Note: Other jet lancers with specifications not mentioned above are also available. Please contact the nearest Sugino sales office.
Application Examples
Polymer tank
Reaction tank
Various other types of tanks etc.
