Roller Burnishing Tool SUPEROLL SH [Inner Surface Through-hole]

SUPEROLL SH

Multi Roller Type

Basic type SUPEROLL for inner surface burnishing (For through-hole).
Equipped with tool diameter adjustment in increments of 0.0025mm.



Video

Burnishing scene

Product Information

Available workpiece shape: Through-hole

Available driving units: Machining center, Engine lathe, Turret lathe, Drilling machine, Drilling unit

Hole size:
Standard φ4.5 – φ200mm
Special φ3.0mm or more

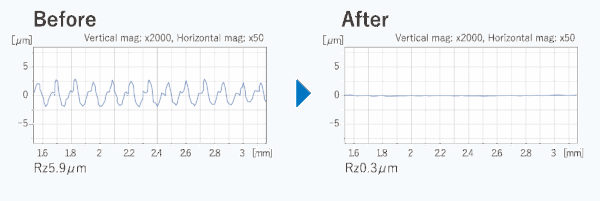

Burnishing data:

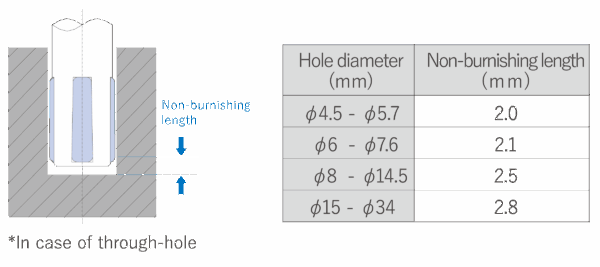

Non-burnishing length:

Selection chart (For hole sizeφ4.5-φ74)

Specifying tool model

About Burnishing length H

Select a Burnishing length H that retains 1 mm or more clearance between Superoll and workpiece. Burnishing lengths H other than standard or long specifications are also available as special types. Please refer to the table below and contact your nearest sales office by using the catalog inquiry sheet, or use the inquiry form on our website.

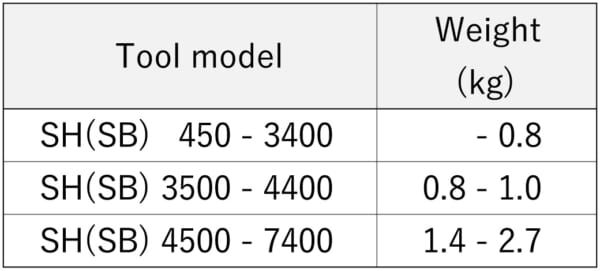

About the tool weight (Reference only)

Please check the allowable tool weight for your driving machine before using the tool.
Please contact us if a specific tool weight is required.

About tool selections

  • Select Tool model within the Tool diameter adjustment range A to suit the hole size.
  • For request a special dimensions not included in the Superoll SH & SB selection chart, please contact.

Application Examples

  • Cylinder inner surface
  • Motor stators
  • Connecting rod
  • Rocker arm
  • Other through-holes, etc.
