COLLET CHUCK SPINDLE NOSES : Spindle Noses
COLLET CHUCK SPINDLE NOSES For ELECTRIC
Collet Chuck Spindle Noses are applicable to ER collet of REGO-FIX AG and provided for all models of the SELFEEDER ELECTRIC series.
If you order Collet Chuck Spindle Nose type, please add “S” to the end of the model No. and specify the Collet Chuck Spindle Nose model No. e.g. ER8.
SUGINO supplies Collet Chuck Spindle Noses other than those described below.

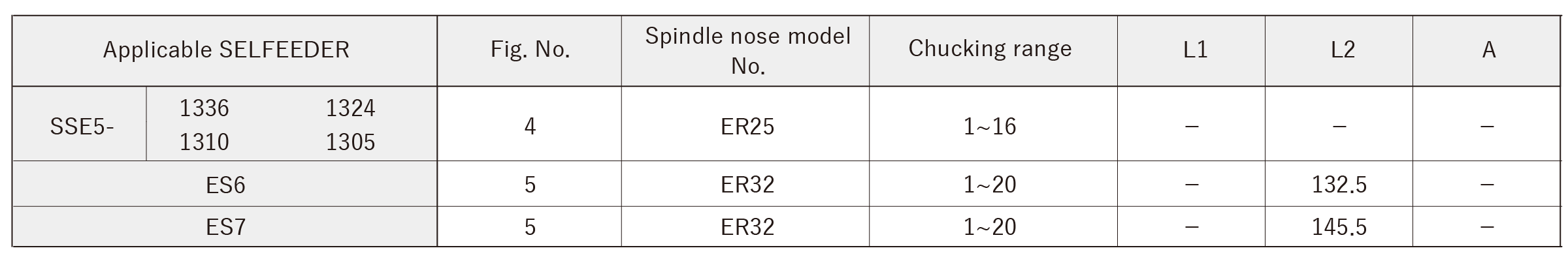

Dimensions
Notes:
Dimensions of spindle nose shown here are as per recommendation of ER collet of REGO-FIX AG.
Collet, collet nut and spanner are not supplied as standard ones. Please order if required.
Adjust the direction so that the drain outlet facing downward, when installing SELFEEDER ELECTRIC in a horizontal position.
Notes:
Dimensions of spindle nose shown here are as per recommendation of ER collet of REGO-FIX AG.
Collet, collet nut and spanner are not supplied as standard ones. Please order if required.
Adjust the direction so that the drain outlet facing downward, when installing SELFEEDER ELECTRIC in a horizontal position.
