Roller burnishing tool SUPEROLL SR16M [Outer Surface Shaft/End surface/Taper shaft/R surface]

SP SR16M

SUPEROLL SR16M

SINGLE ROLLER type

SUPEROLL SR16M is compact SUPEROLL which can be attached to Swiss lathe.
Without changing a tool posture, SUPEROLL SR16M can burnish various shapes of outer and edge surface.



Video

Features

  • Without changing a tool posture, SR16M can burnish various shapes of outer and edge surface.
  • SR16M is compact tool which can be attached to Swiss lathe.

Product Information

Available workpiece shape: Outer surface (Shaft, End surface, Taper shaft, R surface)

Available driving units: Engine lathe, Turret lathe, Swiss lathe

Available burnishing range: No limitation (Except for small size cantilever)

Burnishing data:

Roller tip R size:

Select Roller tip R size in accordance with workpiece or requested burnishing conditions.

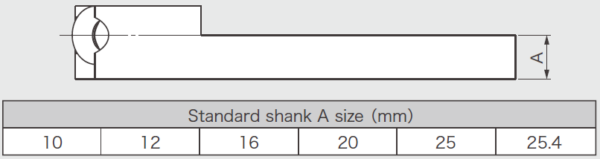

Shank:

*For more detail about a dimension of shank, please show the selection chart.
*For request about special Shank size, contact your nearest sales office.

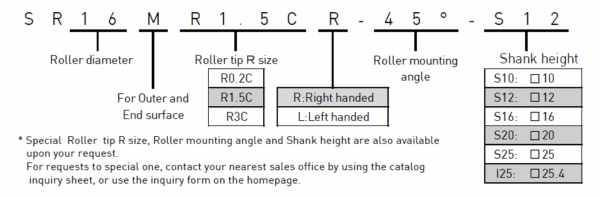

Specifying tool model:

Support Video

“SUPEROLL” SR16M How to replace the roller
