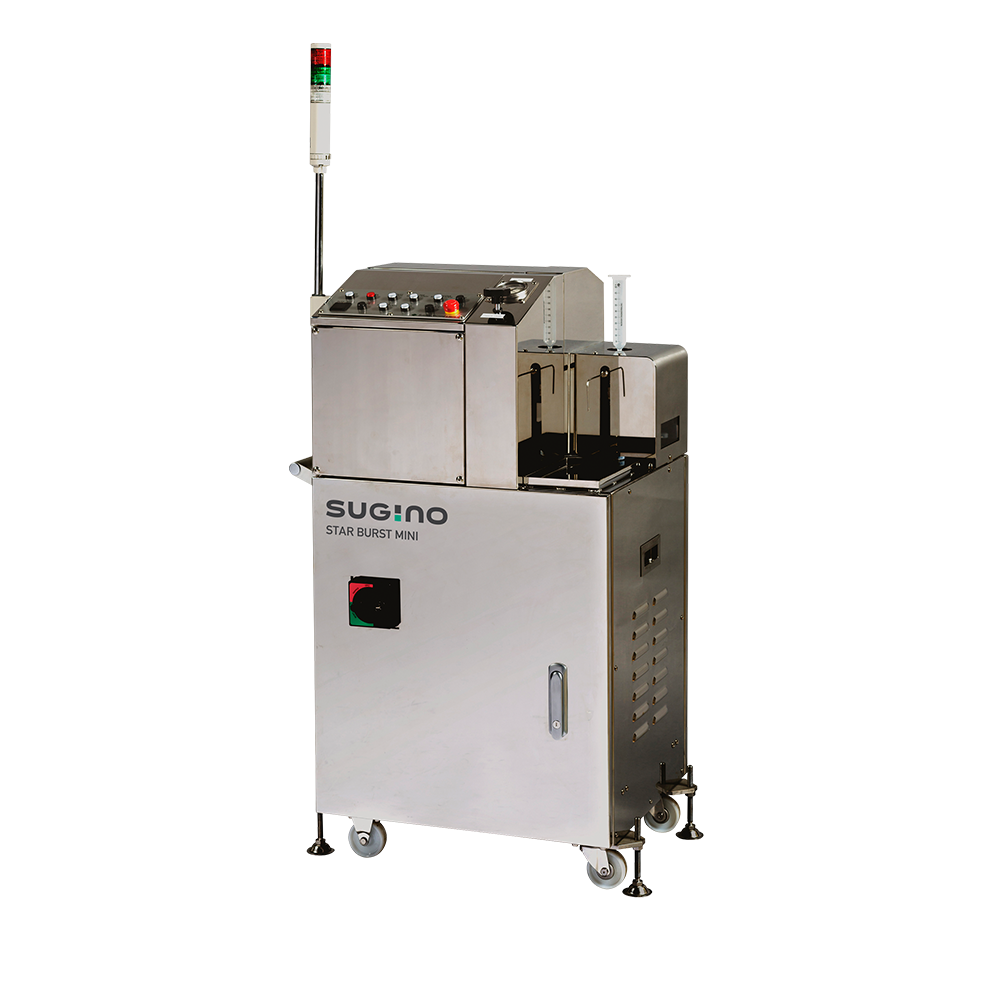

STAR BURST Mini: Wet Pulverization and Dispersion Device

STAR BURST MINI

Ideal for the R&D of super fine particles and emulsions. This model is suitable for reseach and development in the nano-field.

STAR BURST Mini is a wet jet milling device to disperse, emulsify, pulverize and exfoliate particles by collision into a ceramic ball using pressures of 245MPa (2.450 bar or 35.525 psi).
STAR BURST Mini is the ideal partner in the development of cutting-edge, high value materials with extremely small material preparations with maximum yield.

■ Throughput: 6L/hr

 Dispersion, Emulsification, Pulverization, Exfoliation

Features

  1. Ideal for presious materials
    Ultra-high pressure processing at 245MPa is possible
    even with minimum 20mL of raw material.

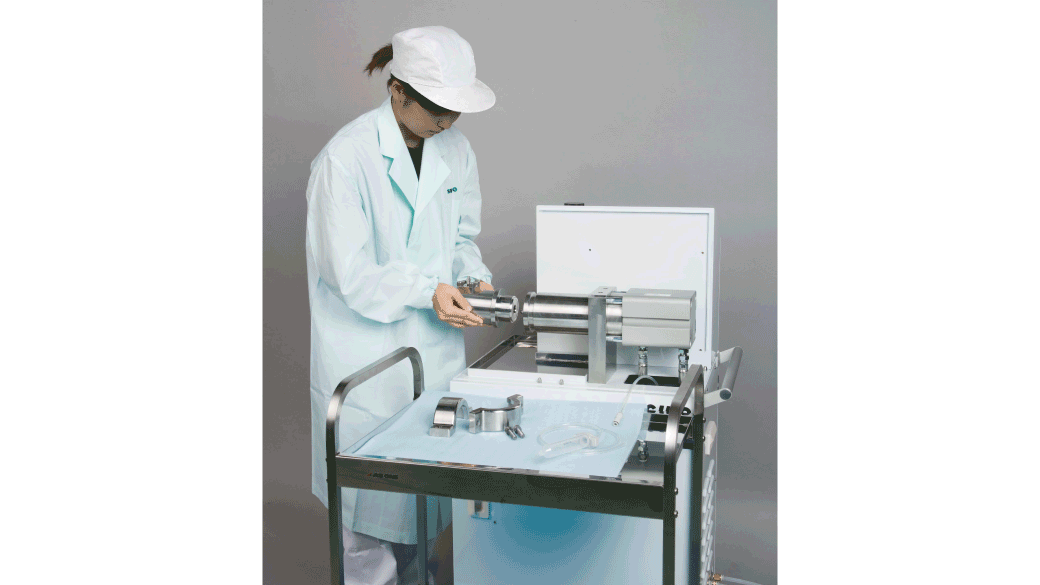

  2. Sanitary design
    STAR BURST’s intuitive design ensures effortless and
    rapid recovery. Disassembly, cleaning and unclogging of
    a nozzle can be performed in a short duration of time.

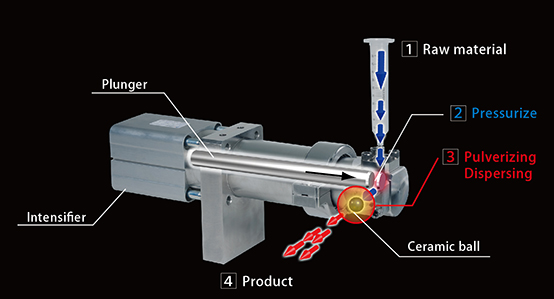

Atomization Mechanism

Specifications

Model number

Motor

Max. throughput

Pressure

Dia. of Chamber nozzle

Explosion Proof Application

(External dimensions WxDxH)

Weight

kW

L/hr

MPa

mm

mm

kg

HJP-25001CE

2.2

6

100-245

φ0.1

600×500×1,145

180
