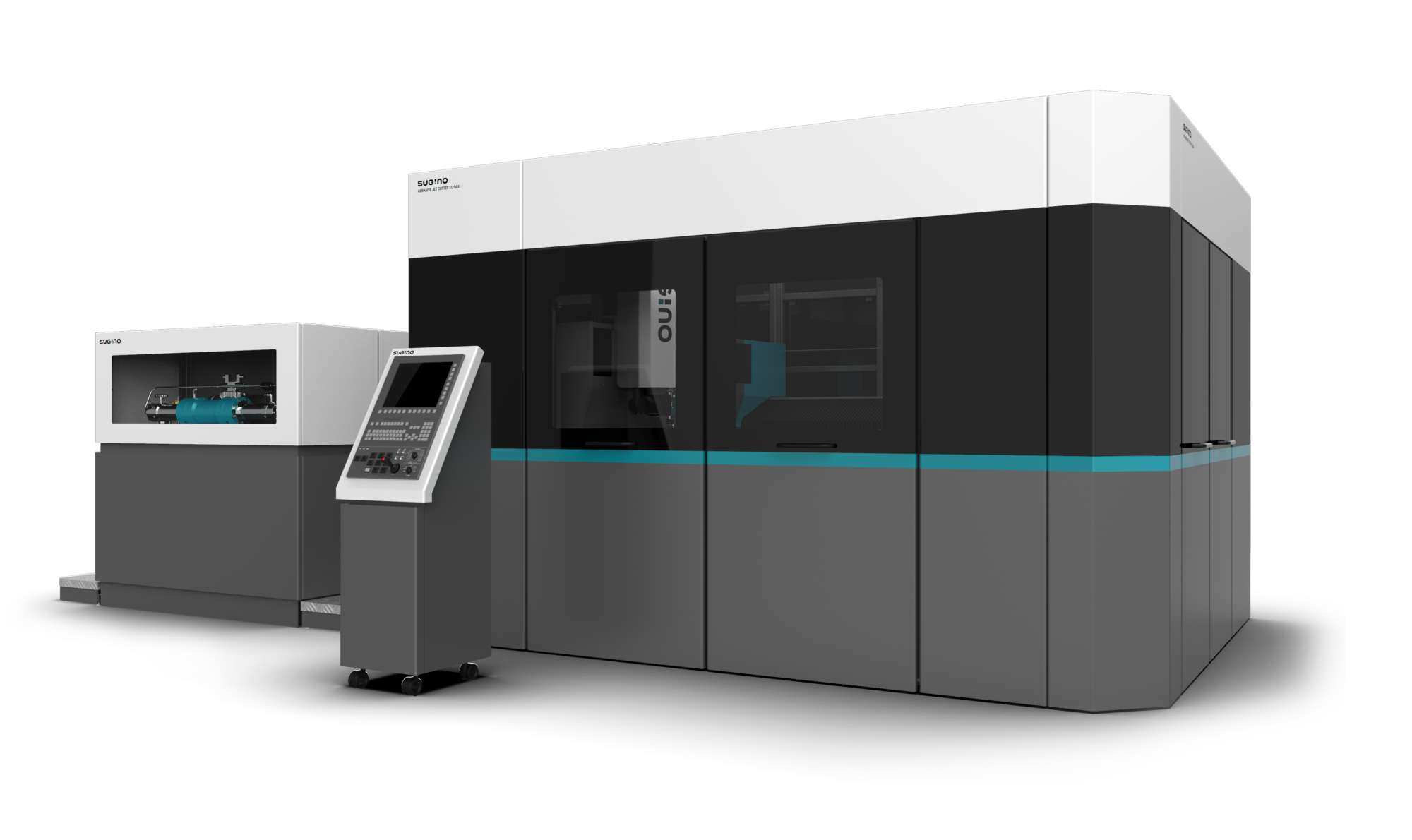

Abrasive Jet Cutter CL-5AX Cantilever Type Ultra-high-pressure Water Cutting System
ABRASIVE JET CUTTER CL-5AX CL-5AX
This new design is a revival of the original model.
Featuring a newly developed 5-axis control head and outer cover, along with reduced power consumption, this model delivers improved machining performance, enhanced usability, a better working environment, and superior energy efficiency.
In order to meet our customers expectations, we will continue to strive to develop high- quality products using our unique super-technologies and creativity.
Features
Faster & Improved Quality
By incorporating a 5-axis control head with newly added A and B axes, along with an enhanced “taper compensation” function, high-speed operation has been achieved while maintaining a high-quality cut surface.
Wide machining area & space-saving design
With a cantilever structure, this compact machine offers sufficient stroke to handle 3×6 shaku (approx. 910 × 1,820 mm) sheets.
Furthermore, by consolidating the necessary system equipment, the overall installation footprint has been reduced to approximately 20 m².
Supporting Comfortable Work
Combining consideration for the factory environment and operator comfort, it enables a more pleasant working environment.

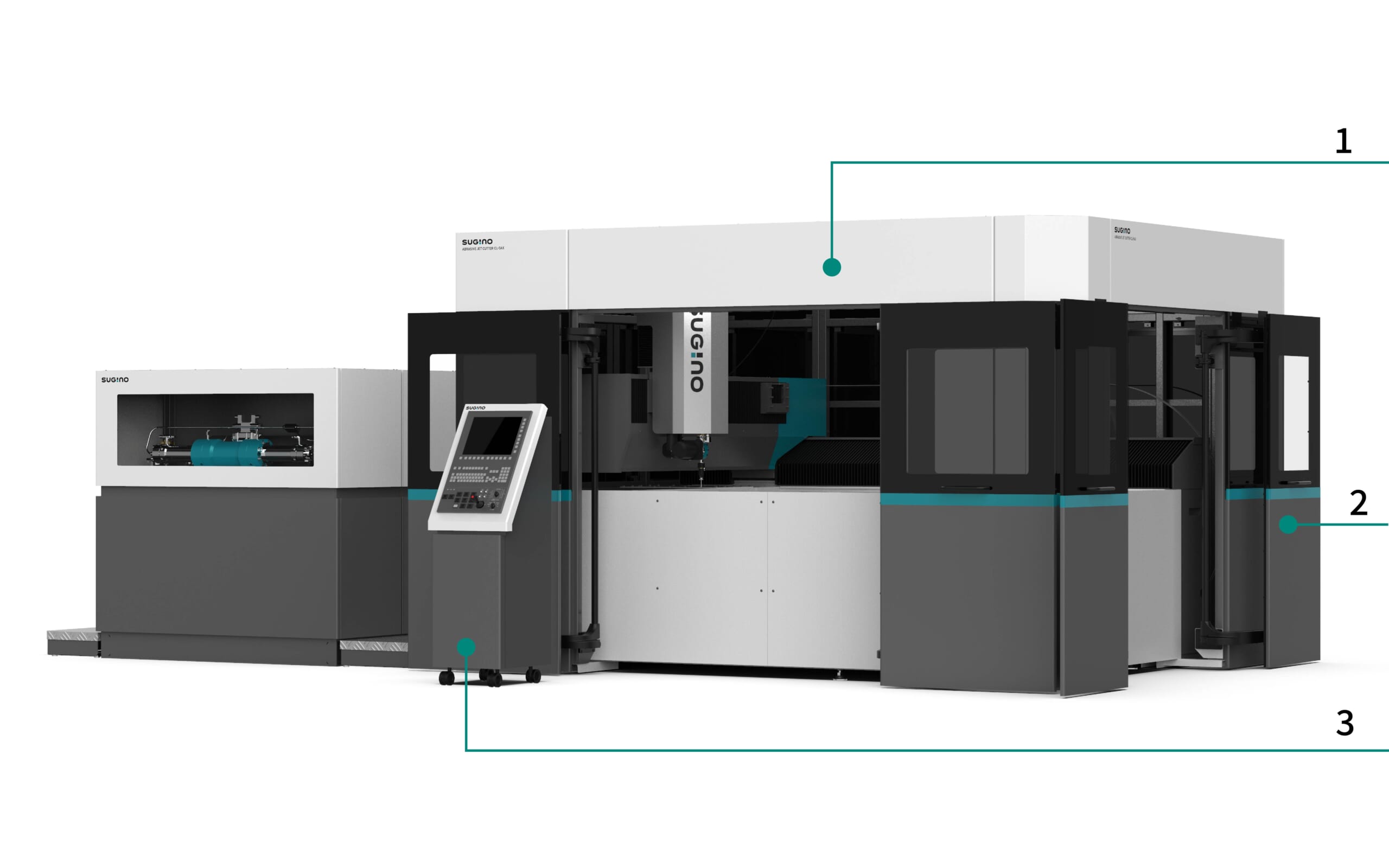

1.)Outer Cover:
Minimizes water splash and noise, allowing for environmentally considerate layouts.
Isolates the machining area to enhance safety.
2.)Large Swinging Door
Compact opening and closing with a swing mechanism
3.)Control Panel
An inclined control panel for enhanced operability, combined with movable casters, improves overall convenience.

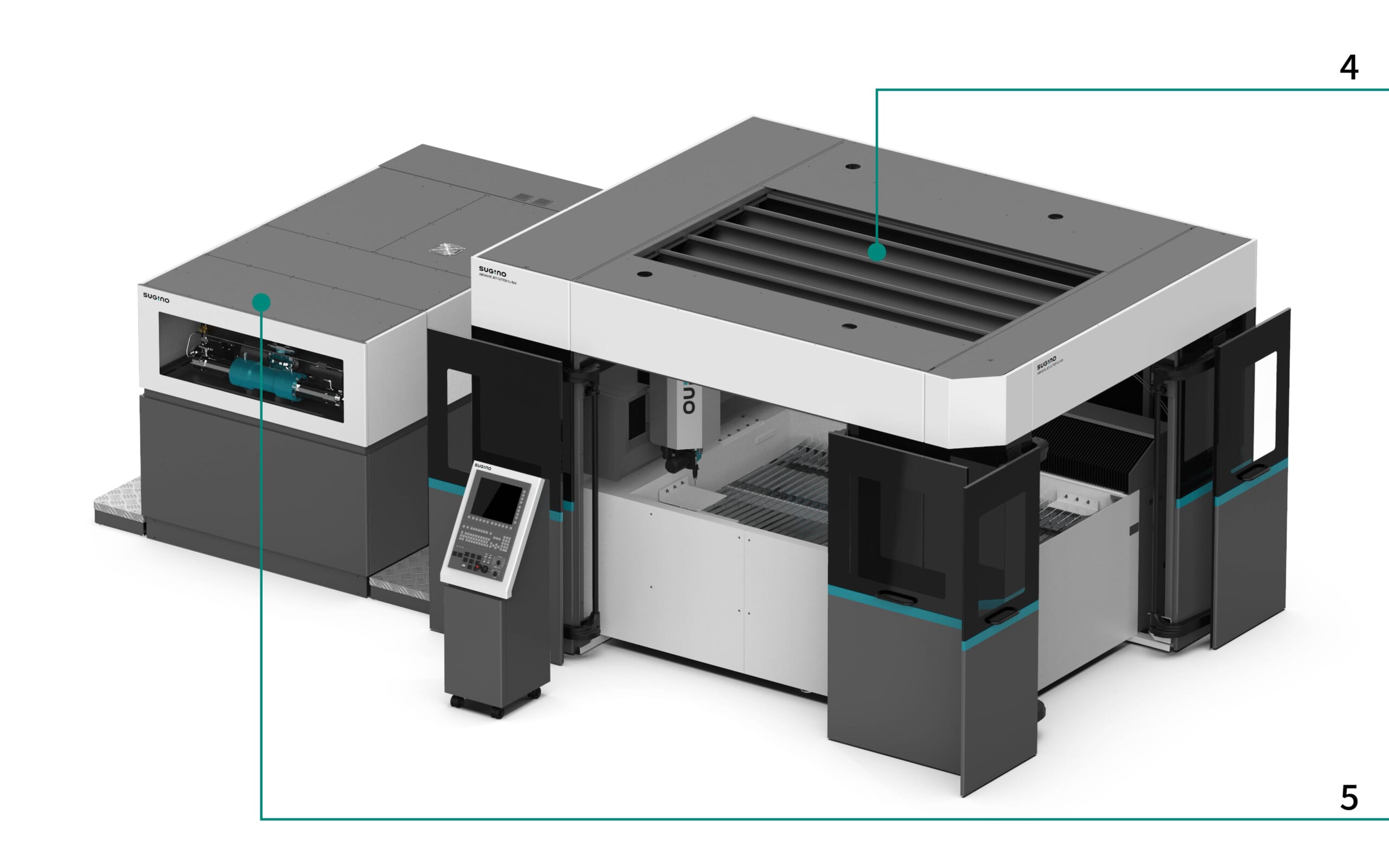

4.)Ceiling shutter
Allows loading of 3×6 shaku sheets (approx. 910 × 1,820 mm)
5.)Pump Station
All equipment is integrated into a single base, achieving a space-saving design.
Ultra-high pressure water pump unit • Abrasive tank
Water supply filter tank unit, control panel, etc

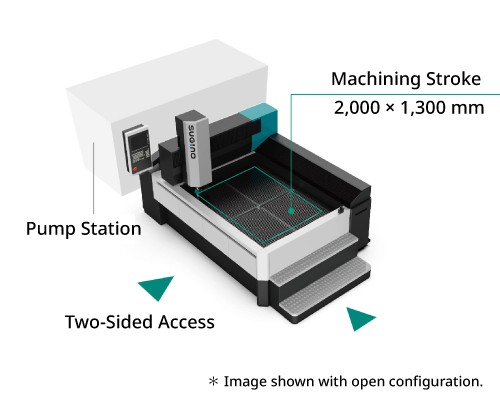

With excellent accessibility from two sides and a full range of convenient features, it supports more comfortable operation.
Specifications
| Processing Machine |
Max. Stroke |
mm | X-axis：2,000 × Y-axis：1,300 × Z-axis：150 A,B-axis：±7° |
| Max. Moving Speed |
m/min | X-axis：10,Y-axis：10,Z-axis：5,A,B-axis：60deg/sec | |
| Positioning Precision | mm | X,Y,Z-axis：±0.05／500mm A,B-axis：±0.1deg | |
| NC Unit | ― | FANUC 31i-B5 PLUS | |
| Dimensiong (Width×Depth×Height) |
mm | Approx.4,300 × 2,700 × 2,600 | |
| Dry Weight | kg | Approx.6,000 | |
| Pump | Max. Dischage Pressure | MPa | 500 or 343 |
| Max. Flow Rate | L/min | 3.0 or 4.3 |
*Specifications above are just an example.

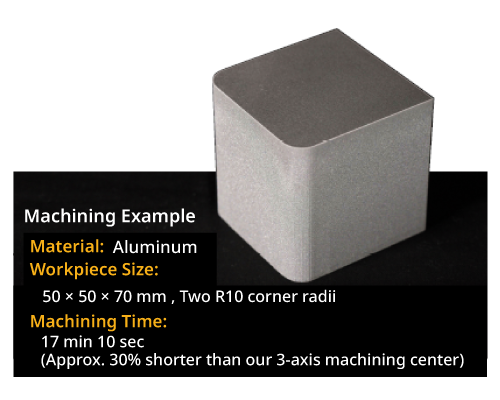

Processing Examples
