3D Nozzle: Automatic Rotating/revolving, High-Pressure Water Cleaning Nozzle Unit for the Inside of Tanks

WJ_tool_3DNOZZLE

3D NOZZLE

Rotating/revolving precision cleaning nozzle!

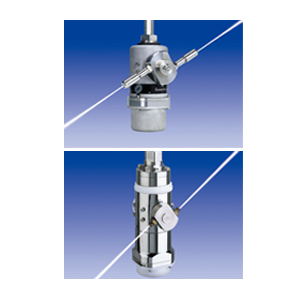

The “3D Nozzle” is a self-rotating nozzle unit used for cleaning polymerization tanks, reactors, spray dryers, and various other tanks.
The cleaning nozzle rotates and revolves due to the reactive force of the high-pressure water spray, thoroughly cleaning the inside of tanks.

MENU

Features

  1. Uniform cleaning
    When compared to conventional methods of cleaning, the precision of the 3D Nozzle is about twice as accurate, making high-quality and clean washing possible. The rotation of the nozzle is controlled by a magnetic braking mechanism.
    This provides the nozzle with an even rotation speed and enables stable cleaning since it is not influenced by atmospheric temperature or clogging.

  2. Improved cleaning
    An improved convergence of high-pressure water is achieved by utilizing a special nozzle uniquely developed by Sugino. This improves cleaning significantly since the loss in impact energy of the high-pressure water is minimized.

Specifications

Model number Pressure Flow rate Nozzle rotation speed Dimensions Connection screws Weight
N
MPa L/min min-1 mm Screw size kg
JRN-080PG 10-30 50-80 14-40
Stepless adjustment		 238×92 Rc3/4 6.5
JRN-200PGS 10-45 80-200 250 × 80 7.0
JRN-200PG 80-200 248 × 102 7.0
JRN-400PG 200-400 307 × 132 Rc1 1/4 13.0
JRN-150HPG 45-70 80-150 270 × 102 Rc3/4 8.0
JRN-130HHPG 50-100 60-130 280 × 102 10.0
JRN-100PGS 10-45 50-100 18-40
Stepless adjustment		 276 × 80 8.0

Note

1. The JRN-100PGS is a slim type of 3D Nozzle that can pass through tank holes of diameter 150.
2. The overall length of the nozzle (B) may change depending on cleaning factors such as the dimensions of the reactor, diameter of tank hole, etc.
