FLEX STAND : Angle/height adjustable stand

FLEX STAND

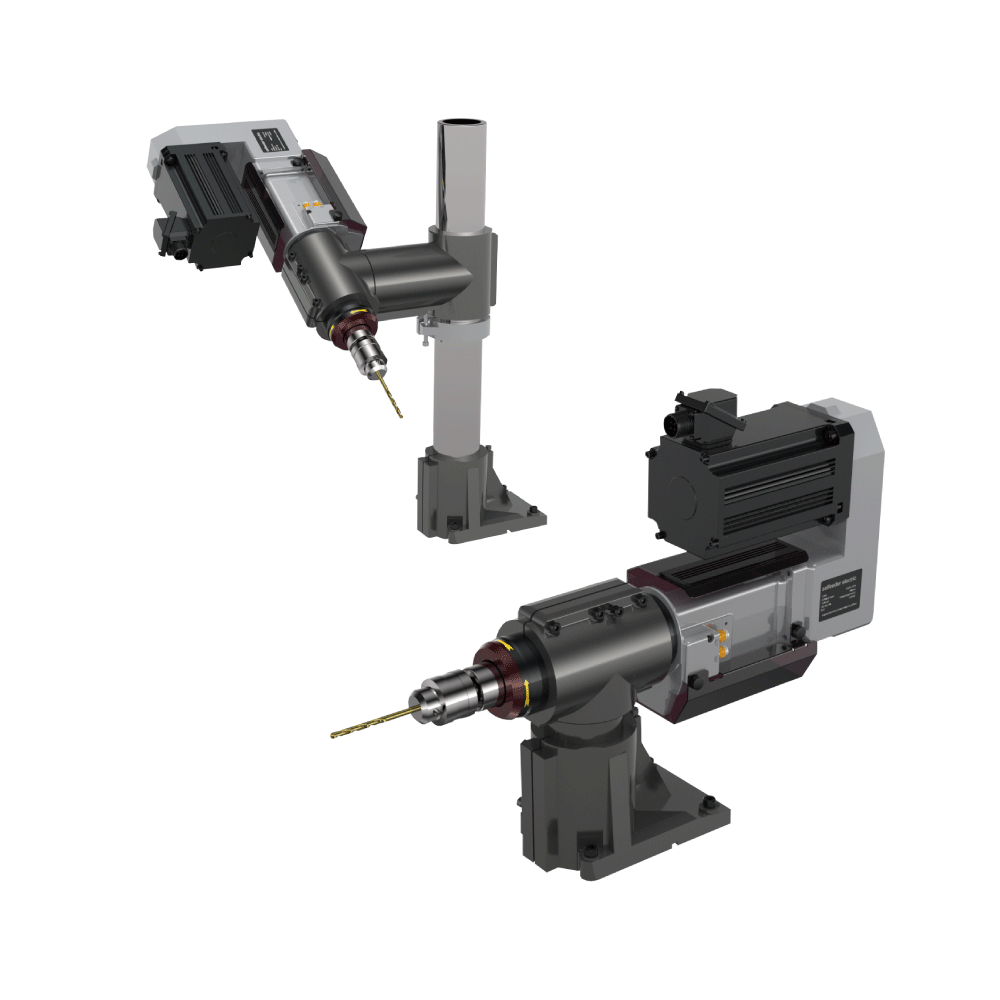

Fixtures capable of holding round body type SELFEEDER or SYNCHROTAPPER at any angle and height.
Combination Examples
Various combinations can be selected depending on the machine layout.

Model | Set contents | ||||
---|---|---|---|---|---|
A SET | B SET | C SET | DA SET | S SET | |
SFB SSE2 | FS52ASET | FS52BSET | FS52CSET | – | – |
SFC | FS7468ASET | FS7468BSET | – | – | – |
SSE3C SSE3 SSTB |
FS74ASET
|
FS74BSET | FS74CSET | FS92DASET | FS92SSET |
SSE4 | FS92ASET | FS92BSET | – | FS92DASET | FS92SSET |
SSE5 SSTC | – | FS104BSET | – | – | – |
SD3(P) | – | – | – | – | FS92SSET |
Note:
Items other than S SET will be shipped unassembled.
When installing a unit other than SD3(P) type to DA SET or S SET, Level Clamp (see reverse side) is required additionally.
Please note that depending on the mounting position and orientation of the unit, it may interfere with the bracket.
In that case,please use an “H” specification level clamp.There are restrictions on the mounting orientation of the unit. For details, please refer to the instruction manual for each unit.

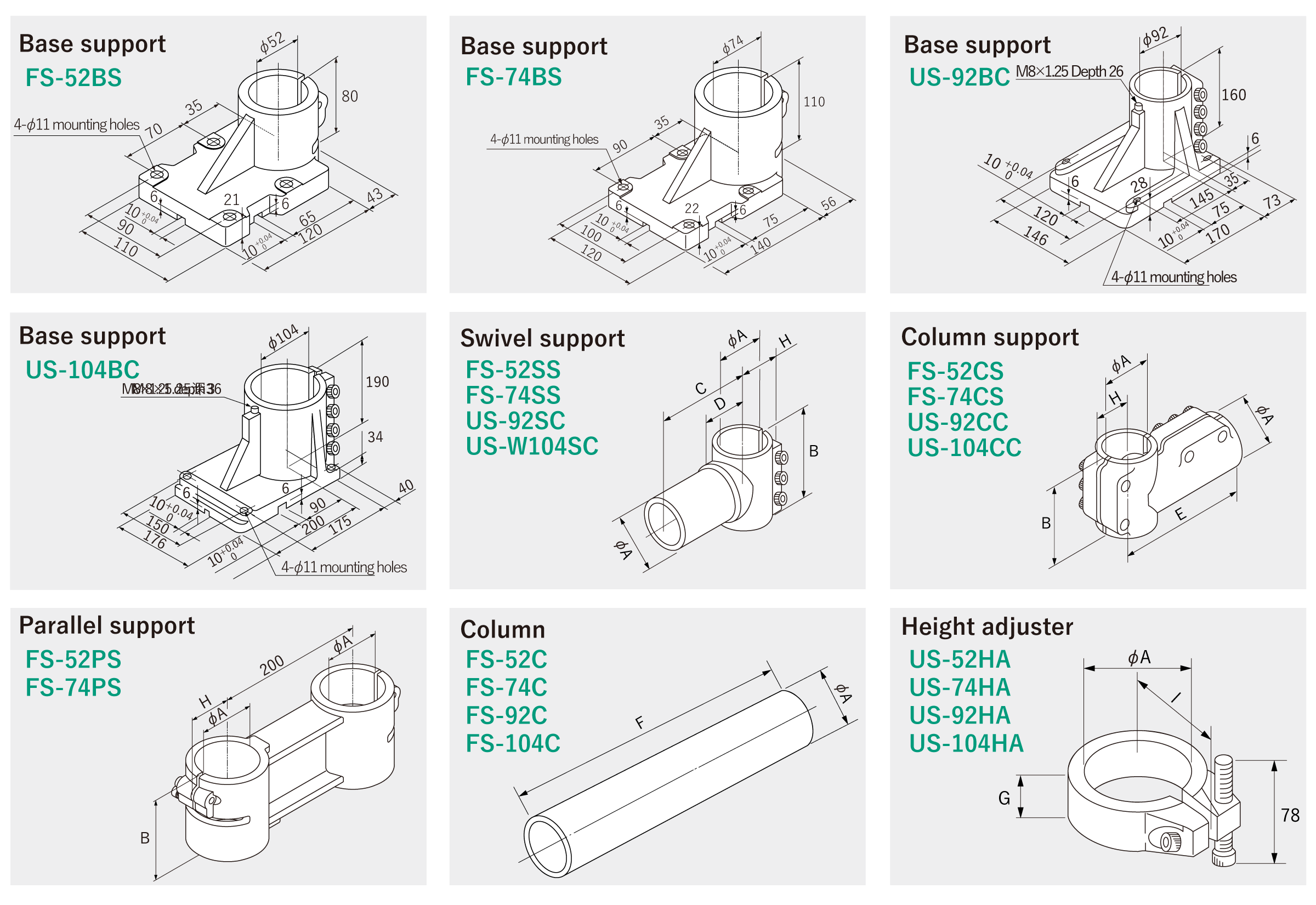

Dimensions

Model/Dimension Code | A | B | C | D | E | F | G | H | I | Compatible models |
---|---|---|---|---|---|---|---|---|---|---|
FS-52 US-52 | 52 | 80 | 115 | 40 | 120 | 500 | 30 | 43 | 52 | SFB SSE2 |
FS-74 US-74 | 74 | 110 | 135 | 45 | 140 | 600 | 30 | 56 | 65 | SSE3C SSE3 SSTB |
FS-92 US-92 | 92 | 160 | 215 | 60 | 205 | 800 | 34 | 70 | 78 | SSE4 |
FS-104 US-104 | 104 | 190 | 250 | 70 | 248 | 1,000 | 38 | 77 | 95 | SSE5 SSTC |
Applicable Models
- SELFEEDER DUO SD3
- SELFEEDER ELECTRIC
- SELFEEDER PNEUMATIC
- SYNCHROTAPPER SSTB/SSTC
