Diamond burnishing tool CAT’S EYE CEO-AJ [Shaft/Taper shaft/R surface/End surface/Counterbore surface]
CAT'S EYE CEO-AJ
Diamond-tool Type
Diamond-tool type SUPEROLL for finishing by pressing diamonds tip to workpieces.
Ideal for finishing high-hardness materials of HRC40-60 that roller type SUPEROLLs have difficulty finishing.
CEO-AJ can be adjusted the tool tip angle.
Thanks to the wider burnishing effective range, CEO-AJ can burnish various shapes of workpiece.
Video
Features
- Burnishing materials with high hardness of HRC40-60.
- Tool designed for workpieces of various shapes and sizes.
Product Information
Available workpiece shape: Outer surface Shaft, Shaft with step, Taper shaft, R surface, End surface
Available driving units: Engine lathe, Turret lathe
Available hardness: HRC40-60

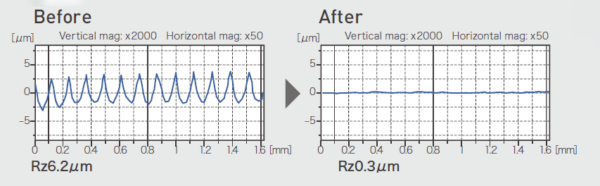

Burnishing data:
Burnishing Scene
Diamond tip (Close-up photo)
Effective burnishing range
Tool attachment direction
Tool tip direction can be adjustable every 15° in the range of 90°.

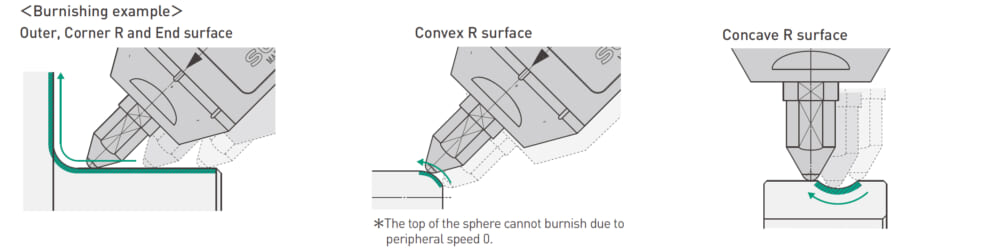

Available burnishing shapes
