Roller burnishing tool SUPEROLL MUGEN [Small Diameter Outer Surface]
SUPEROLL MUGEN
Multi Roller Type

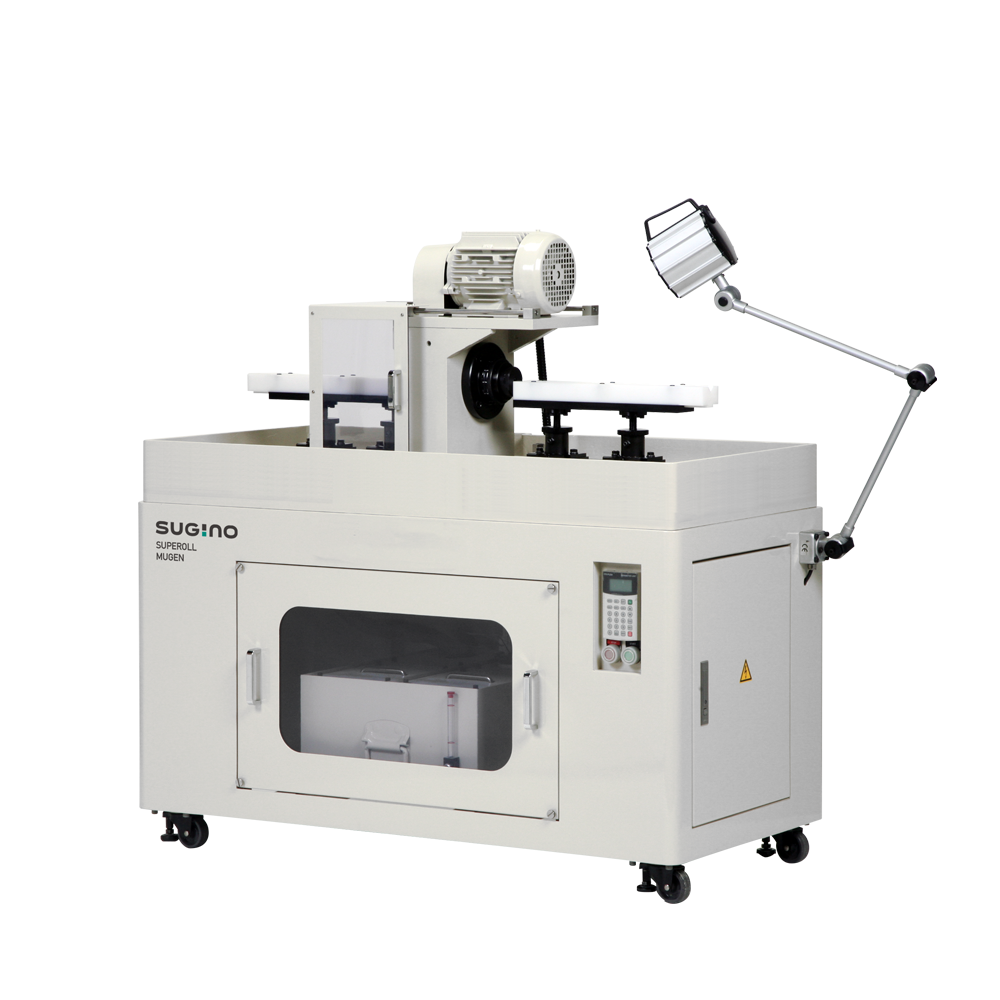

SUPEROLL MUGEN for small diameter outer surfaces is a centerless roller burnishing unit that uses a roller to push down evenly and give metal surfaces as pins, shafts and pipes a smooth, mirror finishing.

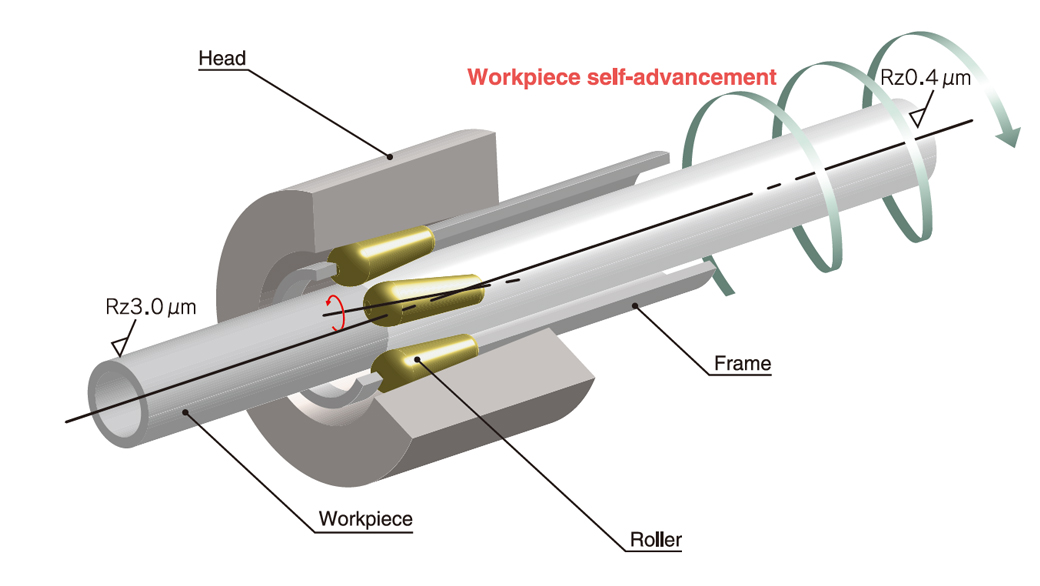

Principle
As the roller inside the SUPEROLL head is inclined at an angle, the workpiece is discharged backwards, rotating like a screw when the frame is rotated. (Self-propulsion of workpiece)
SUPEROLL MUGEN does not require a special feed device and, in principle, it can process outer surfaces of unlimited length.
Equipped with a 0.0025 mm (1 scale mark) micro-adjustment mechanism.
The optimal SUPEROLL head can be selected according to the workpiece dimensions.
SUPEROLL head for the SUPEROLL MUGEN

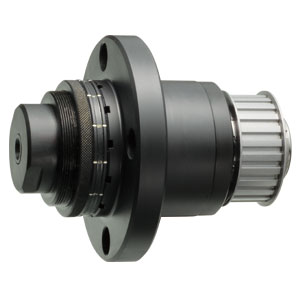

Appearance

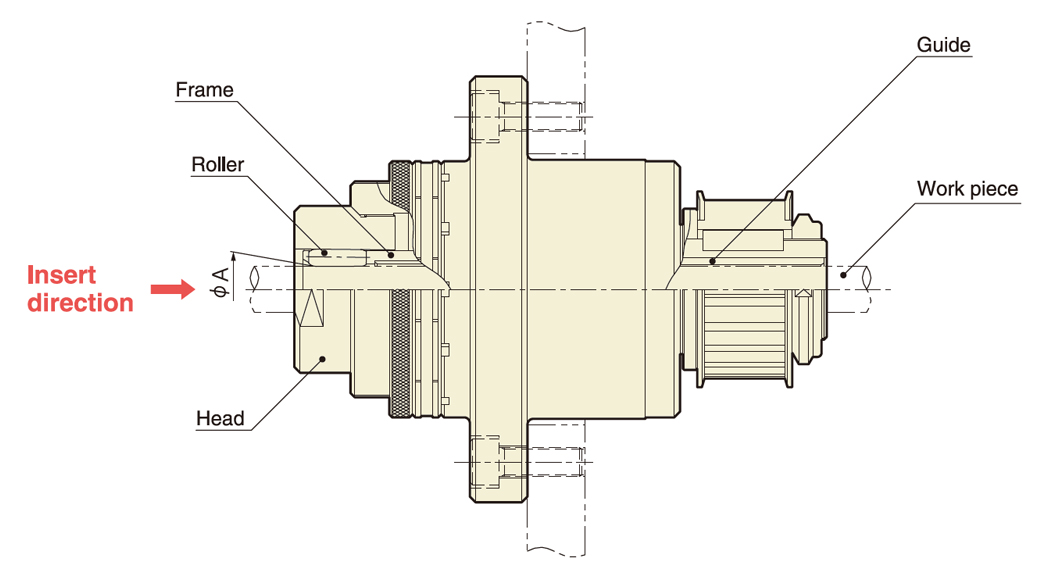

Names of SUPEROLL head parts
SUPEROLL head specifications
| Tool type and number | Tool diameter adjustment range | Tool type and number | Tool diameter adjustment range |
|---|---|---|---|
| mm | mm | ||
| SO 300-infinity LE | 3.05 – 2.75 | SO1025-infinity LE | 10.30 – 10.00 |
| SO 325-infinity LE | 3.30 – 3.00 | SO 1050-infinity LE | 10.55 – 10.25 |
| SO 350-infinity LE | 3.55 – 3.25 | SO 1075-infinity LE | 10.80 – 10.50 |
| SO 375-infinity LE | 3.80 – 3.50 | SO1100-infinity LE | 11.05 – 10.75 |
| SO 400-infinity LE | 4.05 – 3.75 | SO1125-infinity LE | 11.30 – 11.00 |
| SO 425-infinity LE | 4.30 – 4.00 | SO1150-infinity LE | 11.55 – 11.25 |
| SO 450-infinity LE | 4.55 – 4.25 | SO1175-infinity LE | 11.80 – 11.50 |
| SO 475-infinity LE | 4.80 – 4.50 | SO 1200-infinity LE | 12.05 – 11.75 |
| SO 500-infinity LE | 5.05 – 4.75 | SO1225-infinity LE | 12.30 – 12.00 |
| SO 525-infinity LE | 5.30 – 5.00 | SO1250-infinity LE | 12.55 – 12.25 |
| SO 550-infinity LE | 5.55 – 5.25 | SO1275-infinity LE | 12.80 – 12.50 |
| SO 575-infinity LE | 5.80 – 5.50 | SO 1300-infinity LE | 13.05 – 12.75 |
| SO 600-infinity LE | 6.05 – 5.75 | SO1325-infinity LE | 13.30 – 13.00 |
| SO 625-infinity LE | 6.30 – 6.00 | SO1350-infinity LE | 13.55 – 13.25 |
| SO 650-infinity LE | 6.55 – 6.25 | SO1375-infinity LE | 13.80 – 13.50 |
| SO 675-infinity LE | 6.80 – 6.50 | SO1400-infinity LE | 14.05 – 13.75 |
| SO 700-infinity LE | 7.05 – 6.75 | SO 1425-infinity LE | 14.30 – 14.00 |
| SO 725-infinity LE | 7.30 – 7.00 | SO1450-infinity LE | 14.55 – 14.25 |
| SO 750-infinity LE | 7.55 – 7.25 | SO1475-infinity LE | 14.80 – 14.50 |
| SO 775-infinity LE | 7.80 – 7.50 | SO1500-infinity LE | 15.05 – 14.75 |
| SO 800-infinity LE | 8.05 – 7.75 | SO1525-infinity LE | 15.30 – 15.00 |
| SO 825-infinity LE | 8.30 – 8.00 | SO1550-infinity LE | 15.55 – 15.25 |
| SO 850-infinity LE | 8.55 – 8.25 | SO1575-infinity LE | 15.80 – 15.50 |
| SO 875-infinity LE | 8.80 – 8.50 | SO1600-infinity LE | 16.05 – 15.75 |
| SO 900-infinity LE | 9.05 – 8.75 | SO1625-infinity LE | 16.30 – 16.00 |
| SO 925-infinity LE | 9.30 – 9.00 | SO1650-infinity LE | 16.55 – 16.25 |
| SO 950-infinity LE | 9.55 – 9.25 | SO1675-infinity LE | 16.80 – 16.50 |
| SO 975-infinity LE | 9.80 – 9.50 | SO1700-infinity LE | 17.05 – 16.75 |
| SO1000-infinity LE | 10.05 – 9.75 | SO1725-infinity LE | 17.30 – 17.00 |
Note: SUPEROLL heads up are available up to 26 mm diameter. Check the catalog for details.

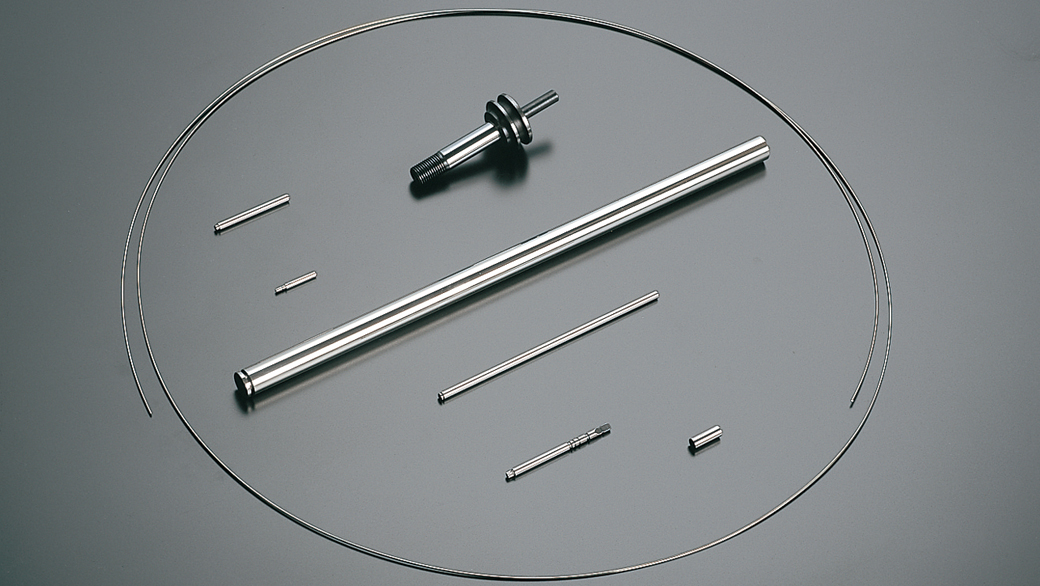

Application Examples
- Guide shaft
- Piston rod
- Motor shaft
- Brake piston, etc.
