Pneumatic control circuit
Pneumatic control circuit
“Standard” Valveless specification (with air connecting block)
This type eliminates the manual operation mechanism for forward and return movement and has a simplified control mechanism.
To control the forward and return speeds, be sure to use a meter-in flow control valve.
Note: For valveless models, “A” is appended at the end of each model number.
Example of pneumatic control circuit
Note: Air equipment up to the air connecting block must be provided by the customer.

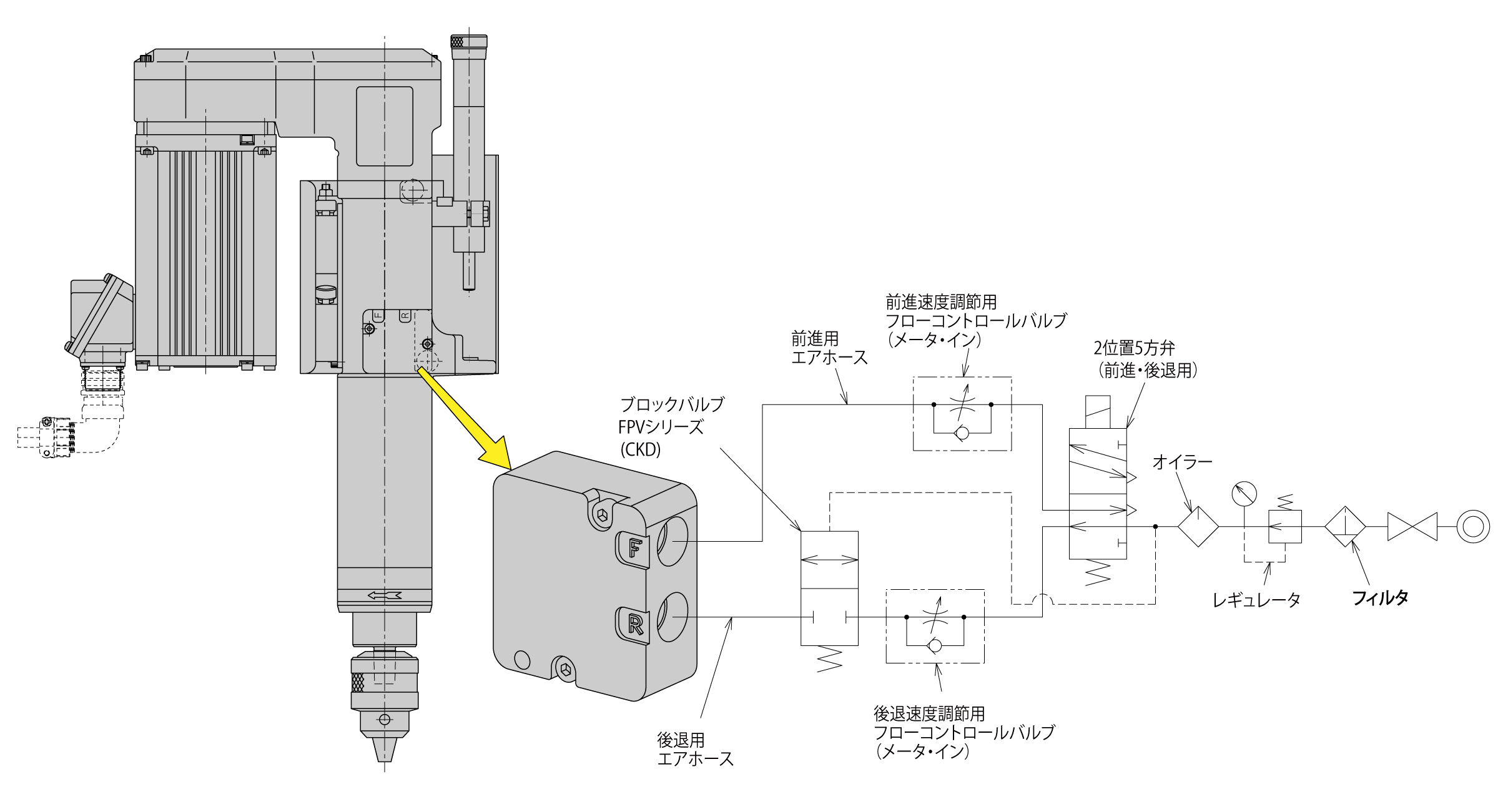

Example of pneumatic control circuit for ram fall prevention
Note: Air equipment up to the air connecting block must be provided by the customer.
“Optional” Valve block specification
Example of pneumatic control circuit
Example of pneumatic control circuit for ram drop prevention
