SELFEEDER VARIMEC SSV2M : Servo Feed Drilling Unit
SELFEEDER VARIMEC SSV2M
This servo feed drilling unit is equipped with a small, high-powered, highly-efficient motor!
The “Selfeeder Varimec SSV2 Type” is a compact, highly-efficient servo feed drilling unit equipped with a small, high-speed, high-powered, and highly-efficient motor.
Great for machining of small components and drilling small holes.
Max. drilling size … φ6.5(Steel)／ φ8.5(Aluminum)

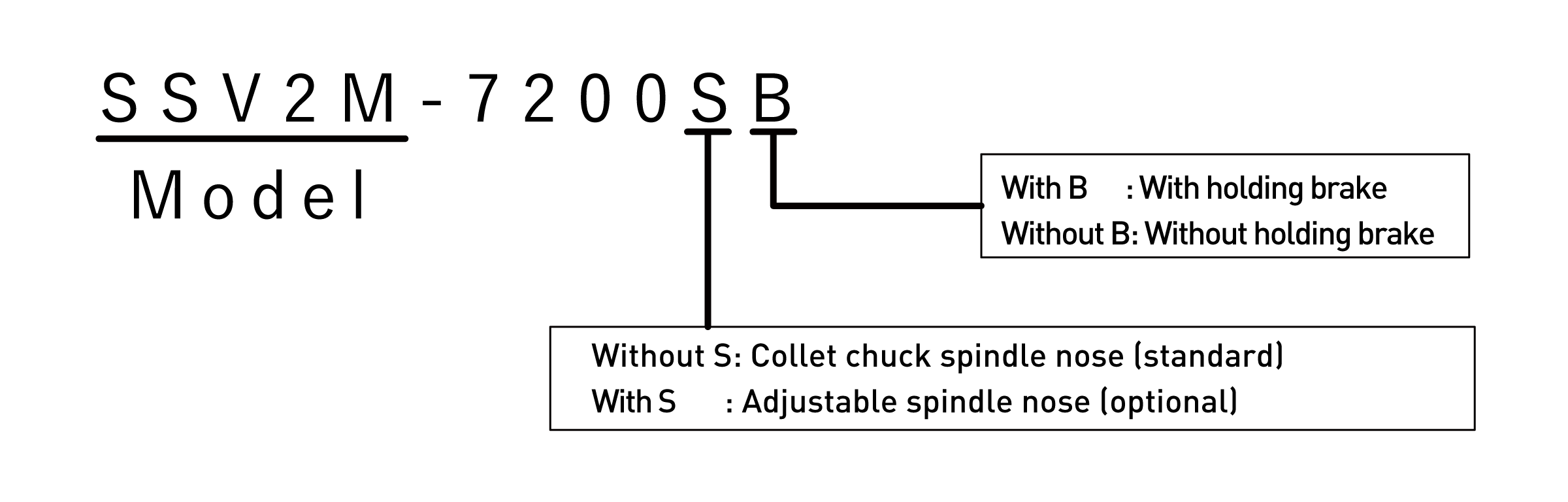

Model
Specifications
Spindle motor: 0.9 kW (1,500 min-1) DC brushless motor / Feed shaft motor: 0.4 kW (1,500 min-1) Servo motor
Notes:
The selection of models should be based on the shape of the workpiece, material, cutting characteristics, diameter and material of tools, rotation speed (cutting speed), etc.
The drilling capacity displayed in the above table is based on values representing a drilling depth of two times the diameter of the drill.
The power voltage of the main shaft inverter has three phases (single phase for the feed shaft controller) AC 200 V ±10% 50/60 Hz.
For servo motor with holding brake (optional) specifications, make sure to add a “B” to the end of the model number.
AL : Aluminum(ADC12) , FC : Cast iron(FC200) , ST : Steel(S45C)
Dimensions
