Aqua Setter Aquozu: Ultra High Liquid Pressure Tube Expansion machine

AQUOZU

Aquozu is a tube expansion machine which expands tubes by ultra-high pressured water and servomotor is installed as a driving source. Ultra-high pressured water works inside a tube and this makes the tube fixing to the tube sheet by a plastic deformation. This machine is suitable for thick and/or long tube expansion.

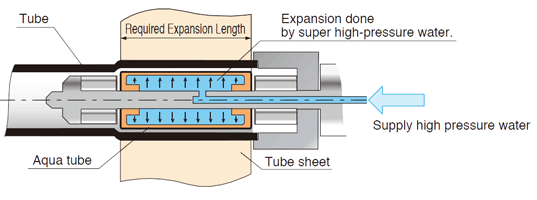

Principle of Liquid Pressure Tube Expansion

Ultra-high pressure water acts on the aqua tube to expand the tube.

Features

Environment Friendly
: Water-assisted, clean, environment-friendly tube expansion.
Work environment improved with oil leak-free servomotor.
Economical : With its ability to expand 800mm in a single expansion, Aqua Setter Eco greatly reduce the expansion time and total cost.
generated.in thickness.
Easy Operation
: Even thick tube can be expanded at your fingertips.
Foolproof equipment with touch-screen system.
Safety
: As no resistance force is generating during expansion, it improves
safety of operation.
Improve Quality
: No tube deformation and tube inner diameter hardening/flaking is generated.
