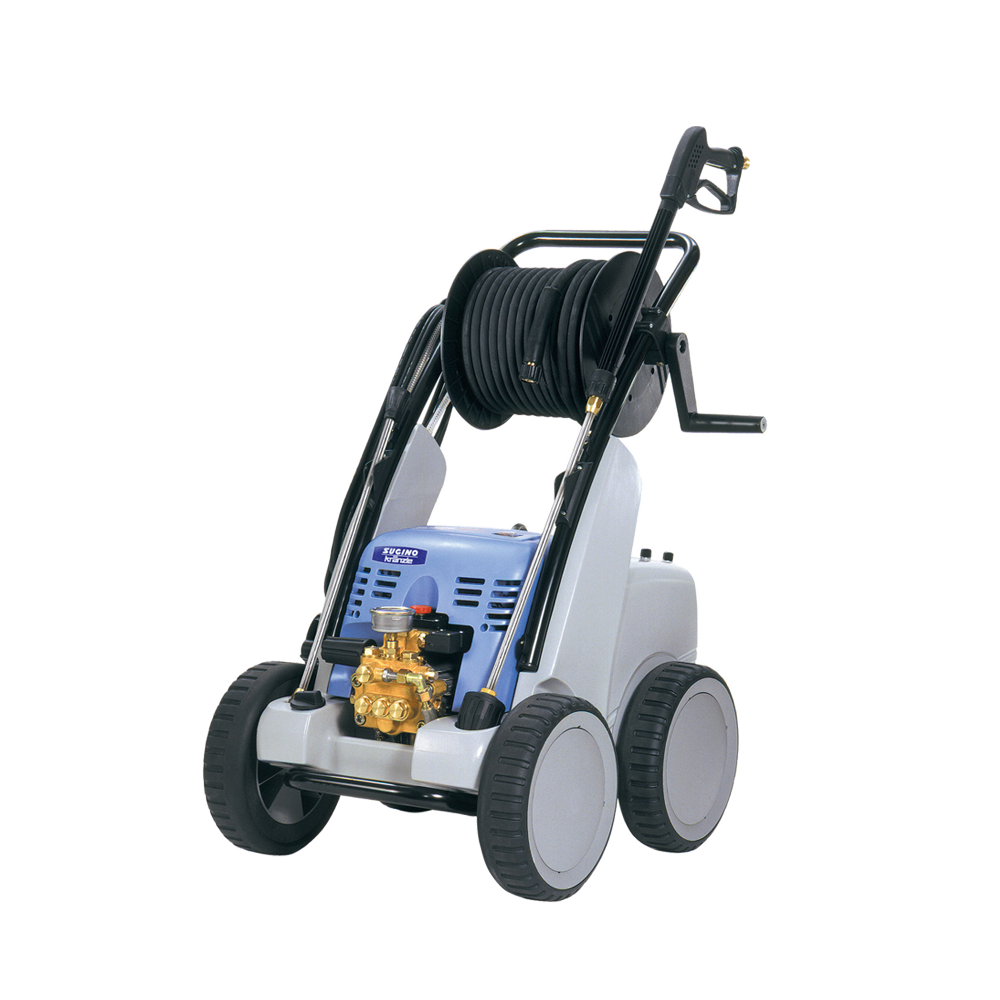

Quadro 800TST: Pump Integrated-Type Portable High-Pressure Cleaner
SUGINO/KRANZLE QUADRO 800TST
The “Quadro 800TST” is a portable cleaner that cleans using high-pressure water at a maximum discharge pressure of 25 MPa.
It is a 4-wheel cleaner that is easy to handle and can be moved around comfortably.
Features
Specifications
| Model number | Discharge pressure |
Discharge volume | Water supply tank |
Water supply temperature |
Self-priming level | Voltage | Electric current | Electric power | Electric power supply cable |
External dimensions (W x D x H) |
Weight |
| MPa | L/min | L | °C or less | m or less | V | A | kW | m | mm | kg | |
| Quadro 800TST | 3 – 25 | 5 – 13 | 16 | 60 | 2.5 | Three phase 200 V | 23 | 7.5 | 7.5 | 770 × 570 × 990 | 89 |
Standard Equipment

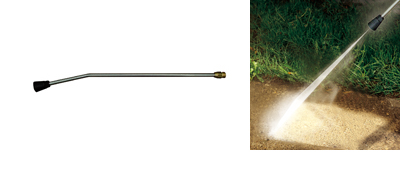

Fan Jet Nozzle 04 Dimensions: φ 35 × 655 mm

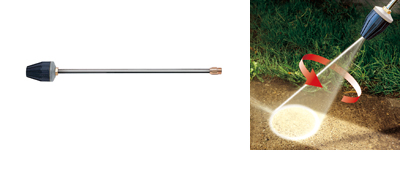

Turbo Killer Nozzle 04 (with lance) Dimensions: φ 60 × 750 mm
Starlet II Gun, High-pressure hose
Starlet II Gun
High-pressure hose
Application examples
Cleaning of small airplanes
Cleaning of conveyors
Cleaning of floors
