OPERATE-SIGNAL KITS for ELECTRIC : Forward/reverse end kit
OPERATE-SIGNAL KITS For ELECTRIC

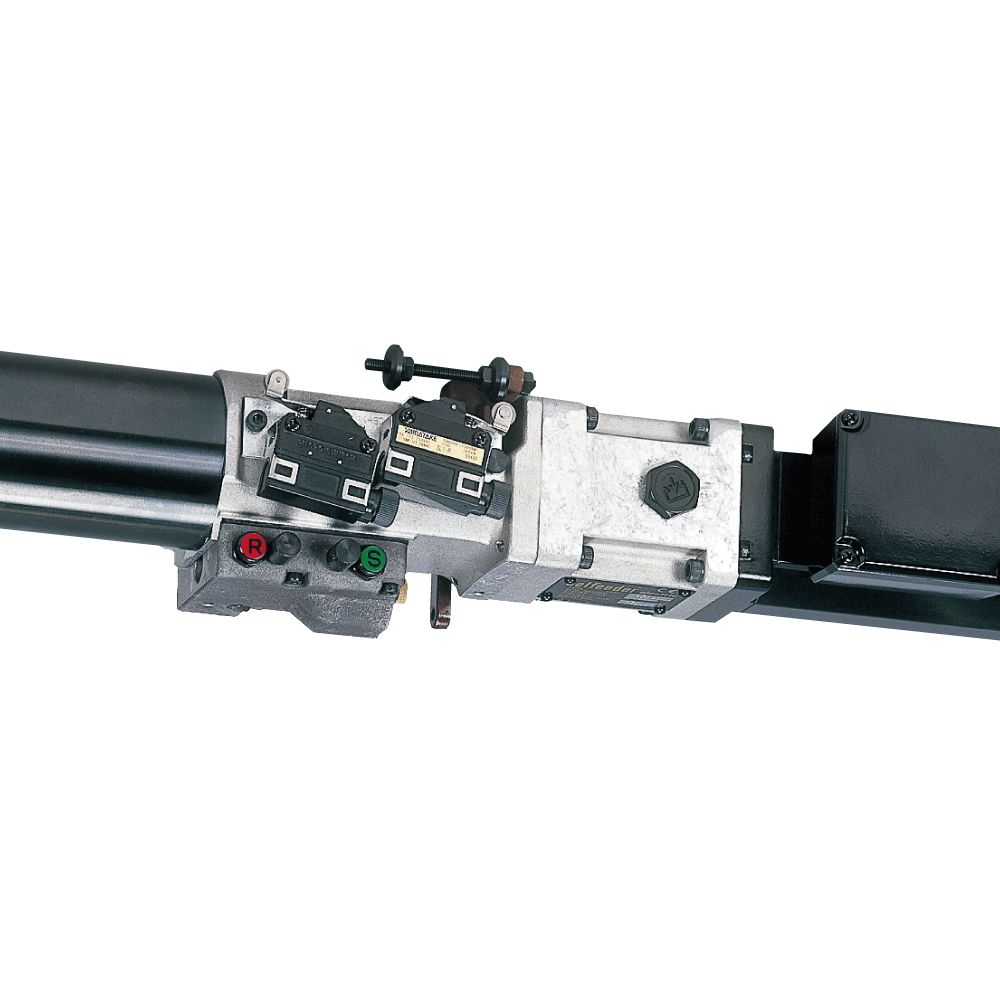

This kit is designed to accurately detect the operation of the air-feed drilling unit “Selfeeder Electric” and control synchronized operation with other equipment (index table and automatic clamping device) by sending out an electrical signal.
Azbil’s “SL1-P” limit switches are used.
For installation of limit switches other than those listed above, please specify when ordering.
Installation Example

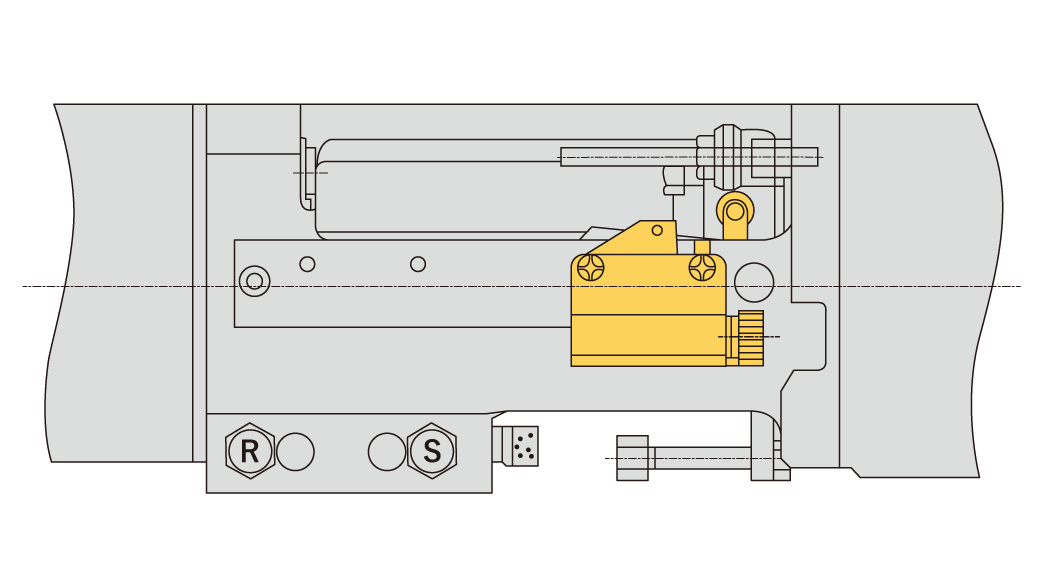

Ex 1: Detection of return position

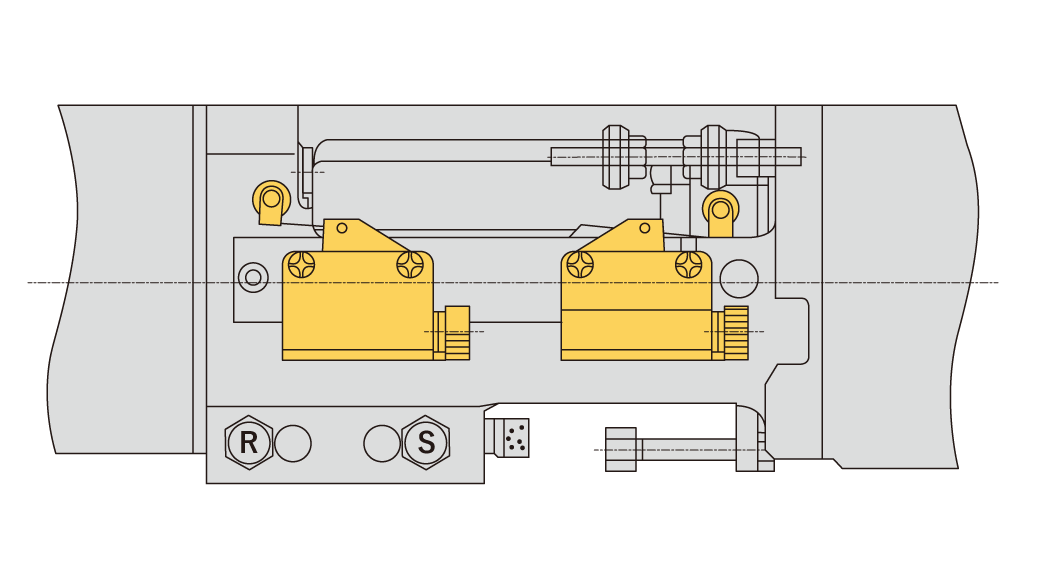

Ex 2: Detection of max. drilling depth position and return position
Model and Type of Detection
| Model Number | Type of Detection | Applicable Selfeeder Electric |
|---|---|---|
| OSK-80-EM | Type of Detection | SSE2 SSE3 SSE3C |
| OSK-80-WM | Detection of max. drilling depth position and return position | |
| OSK－100EM | Type of Detection | SSE4 SSE5 |
| OSK-100-WM | Detection of max. drilling depth position and return position | |
| OSK-150-EM | Type of Detection | |
| OSK-150-WM | Detection of max. drilling depth position and return position | |
| OSK-200-EM | Type of Detection | |
| OSK-200-WM | Detection of max. drilling depth position and return position |
